Fairdale Hareraiser 26" DJ Frame

Fairdale Hareraiser 26" DJ Frame

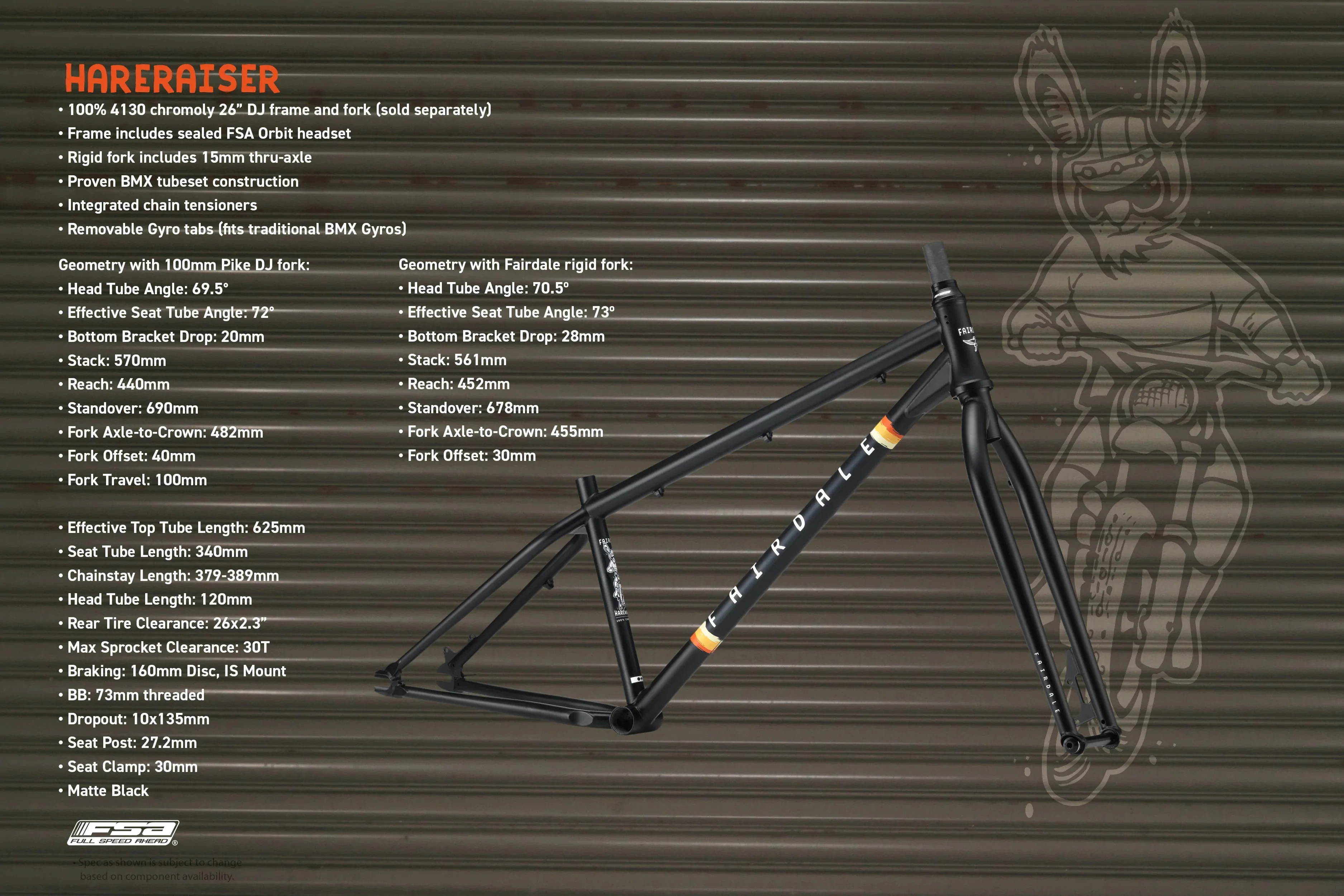

Introducing the Fairdale Hareraiser.

This fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.

Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible. FSA Orbit headset included with frame.

Available as Frame/Headset or Fork only.

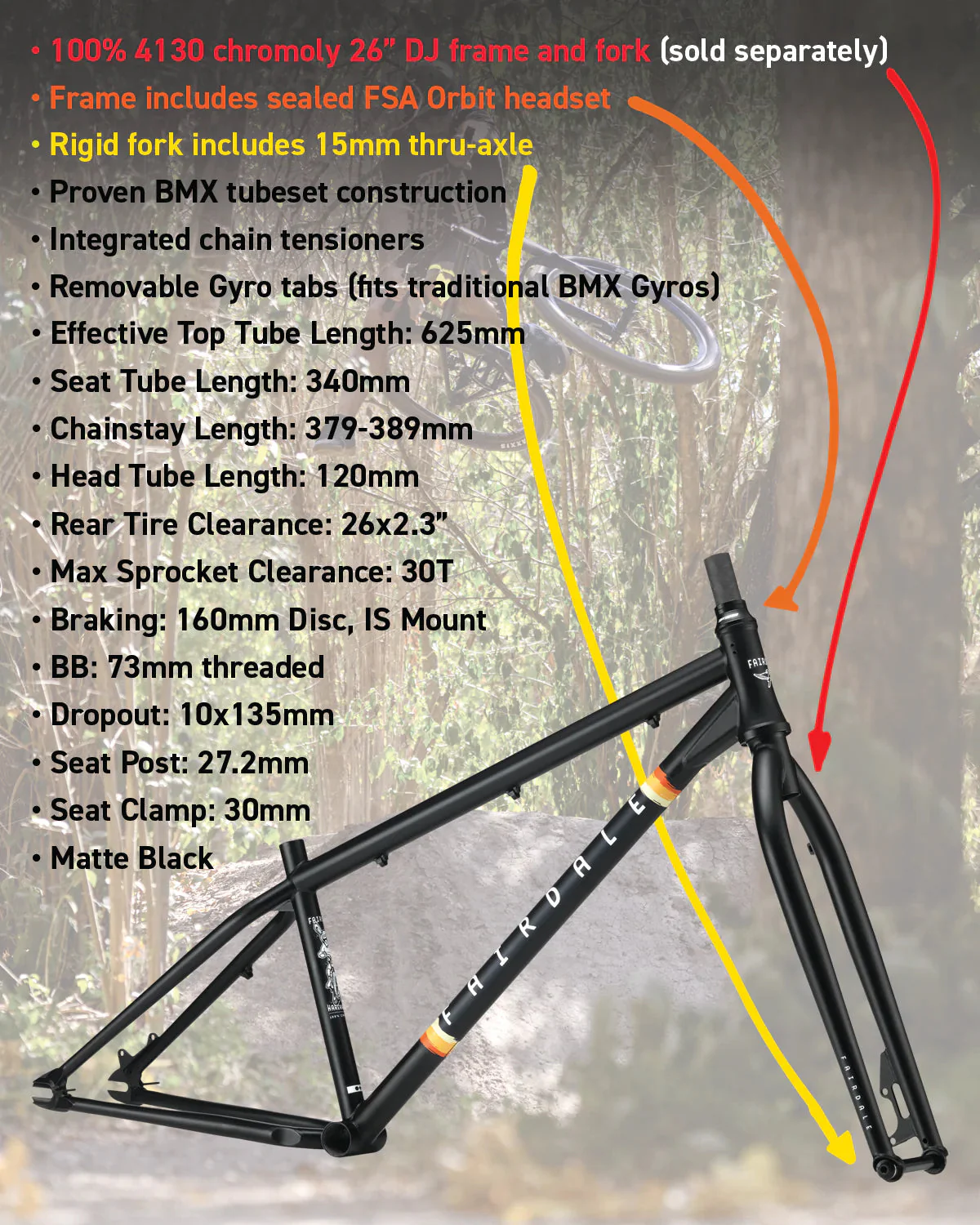

Features

• 100% 4130 chromoly DJ frame
• Frame includes sealed FSA Orbit headset
• Rigid fork includes 15mm thru-axle
• Proven BMX tubeset construction
• Integrated chain tensioners
• Removable Gyro tabs (fits traditional BMX Gyros)

Specs

Effective Top Tube Length: 625mm
Seat Tube Length: 340mm
Chainstay Length: 379-389mm
Head Tube Length: 120mm
Rear Tire Clearance: 26x2.3"
Max Sprocket Clearance: 30T
Braking: 160mm Disc, IS Mount
Bottom Bracket: 73mm threaded
Dropout: 10x135mm
Seat Post: 27.2mm
Seat Clamp: 30mm
Weight: 6.17lbs / 2.78kg

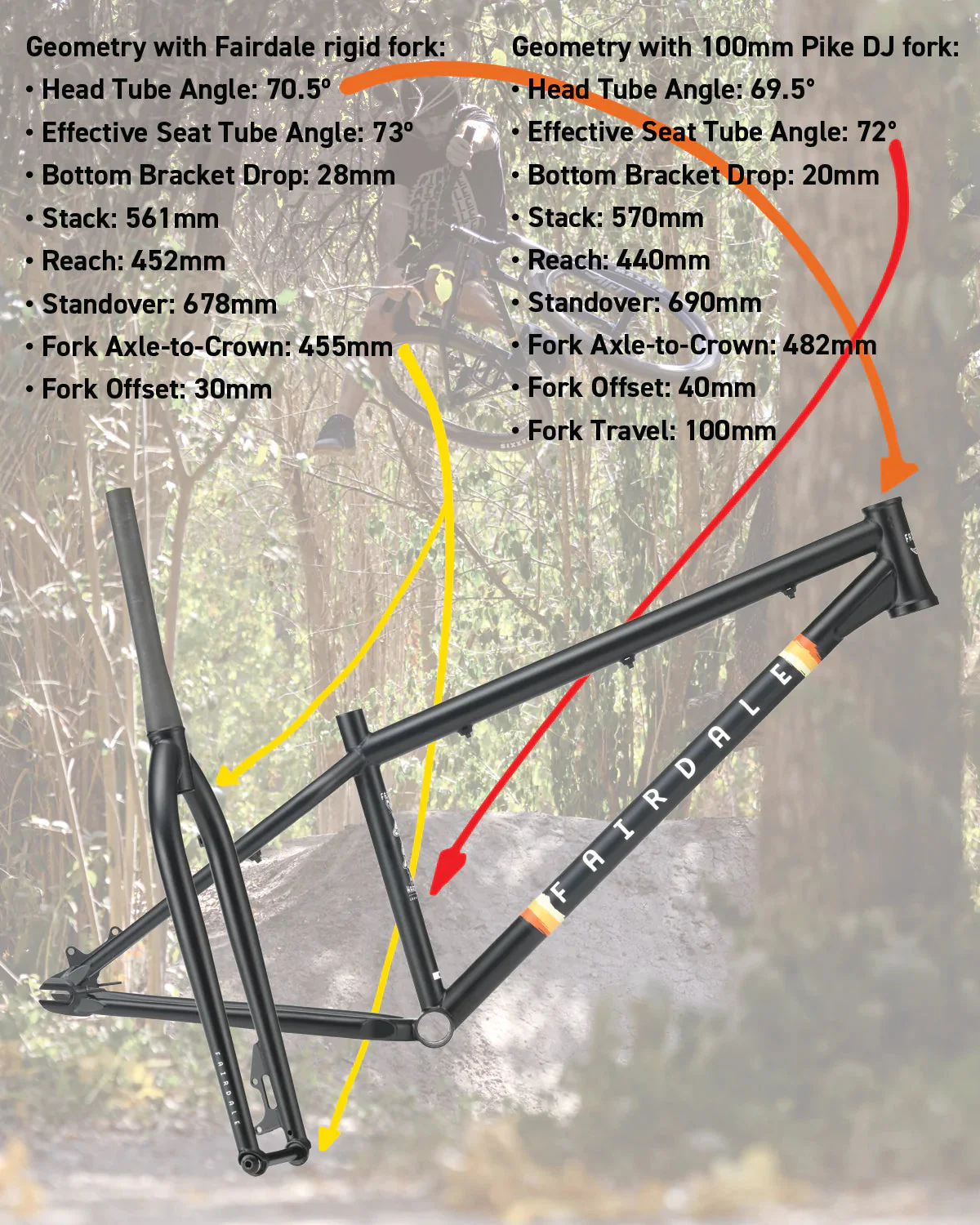

Geometry with Fairdale Rigid Fork (Sold Separately)

Frame Head Tube Angle: 70.5°
Frame Effective Seat Tube Angle: 73°
Frame Bottom Bracket Drop: 28mm
Frame Stack: 561mm
Frame Reach: 452mm
Frame Standover: 678mm
Fork Axle-to-Crown: 455mm
Fork Offset: 30mm
Fork Tire Clearance: 2.6"

Geometry with 100mm Fork (ex: Pike DJ, Sold Separately)

Frame Head Tube Angle: 69.5°
Frame Effective Seat Tube Angle: 72°
Frame Bottom Bracket Drop: 20mm
Frame Stack: 570mm
Frame Reach: 440mm
Frame Standover: 690mm
Fork Axle-to-Crown: 482mm
Fork Offset: 40mm
Fork Travel: 100mm
