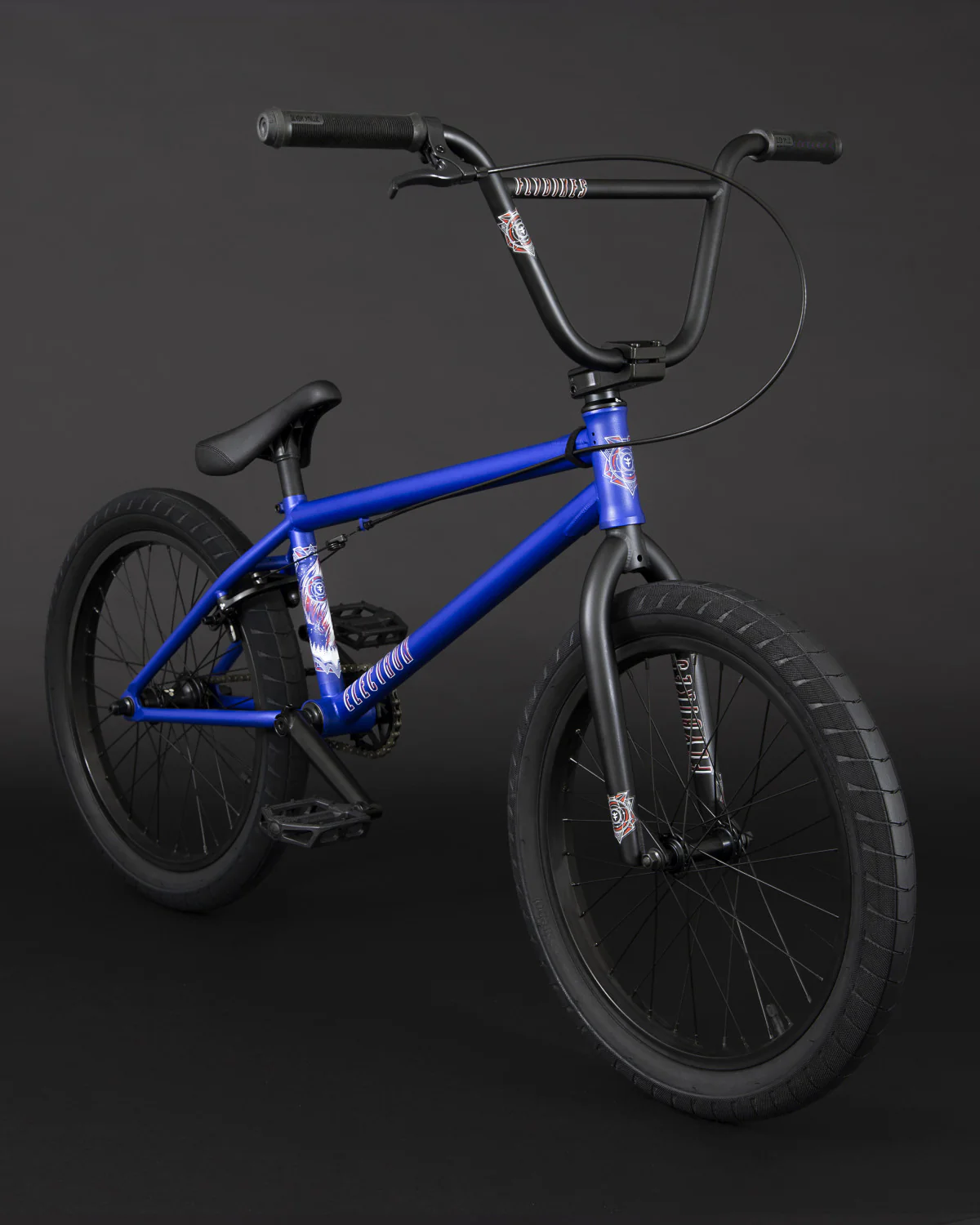

Fly Bikes Electron 20" Complete BMX Bike 2024

Fly Bikes Electron 20" Complete BMX Bike 2024

The new ELECTRON BMX has been made to let every rider rank the highest quality ride without breaking the bank. Cr-Mo material in stress points power its endurance.

- Devon grips
- Ruben Pedals
- Springhanger Brake system
- Trebol Tires.
- Sealed Rear 9T Cassette Hub
- 3 Piece CrMo Crankset
- 20.5” and 21”, RHD or LHD.

GEOMETRY:
TOP TUBE LENGTH - 20.5" / 21”
CHAIN STAY LENGTH - 13.2”
HEAD TUBE ANGLE - 75º
SEAT TUBE ANGLE - 71º
BB HEIGHT- 11.75”
STAND OVER HEIGHT - 9”
FORK OFFSET - 27MM.
BAR RISE - 8.75”
BAR WIDTH - 29”
BAR BACKSWEEP - 10º
BAR UPSWEEP - 2º
_
SPECIFICATIONS:
FRAME - 4130 CRMO DT / 1020 HI-TEN / WELDED PIVOTS
FORK - 4130 CRMO 1 PIECE STEER TUBE / 1020 HITEN LEGS
BARS - 1020 HITEN
GRIPS - FLYBIKES DEVON / 160 MM LONG
STEM - TREBOL TOP LOAD / FORGED / 6061-T6 ALUMINUM / 50MM
HEADSET - TREBOL / INTERNAL SEALED BEARING
LEVER - RIGHT / DIE CASTING ALLOY
BRAKE - TREBOL SPRINGHANGER / FORGED / 6061 T-6 ALUMINUM
CRANKS - 3PC / 4130 CRMO / 170 MM ARM LENGTH
BOTTOM BRACKET - MID / SEALED BEARING
SPROCKET - TREBOL / HI-TEN STEEL / 25T
PEDALS - FLYBIKES RUBEN GRAPHITE / NYLON - FIBERGLASS COMPOUND
CHAIN -510 TYPE / 70 LINKS
RIMS - TREBOL / DOUBLE SIDE WALLED / 6061-T6 ALUMINUM / 36H
FRONT HUB - ALLOY SHELL / LOOSE BALL / 3/8” MALE AXLE / 36H
REAR HUB - TREBOL / SEALED BEARING / 14MM MALE AXLE / 36H / 9T
TYRES - TREBOL 2.35 FRONT & REAR / 60 TPI / 65 PSI
SEAT - ELECTRON COMBO SEAT / 100% SYNTHETIC LEATHER / 25 MM THICKNESS.
WEIGHT - 11.3 KG / 24.9 LB
