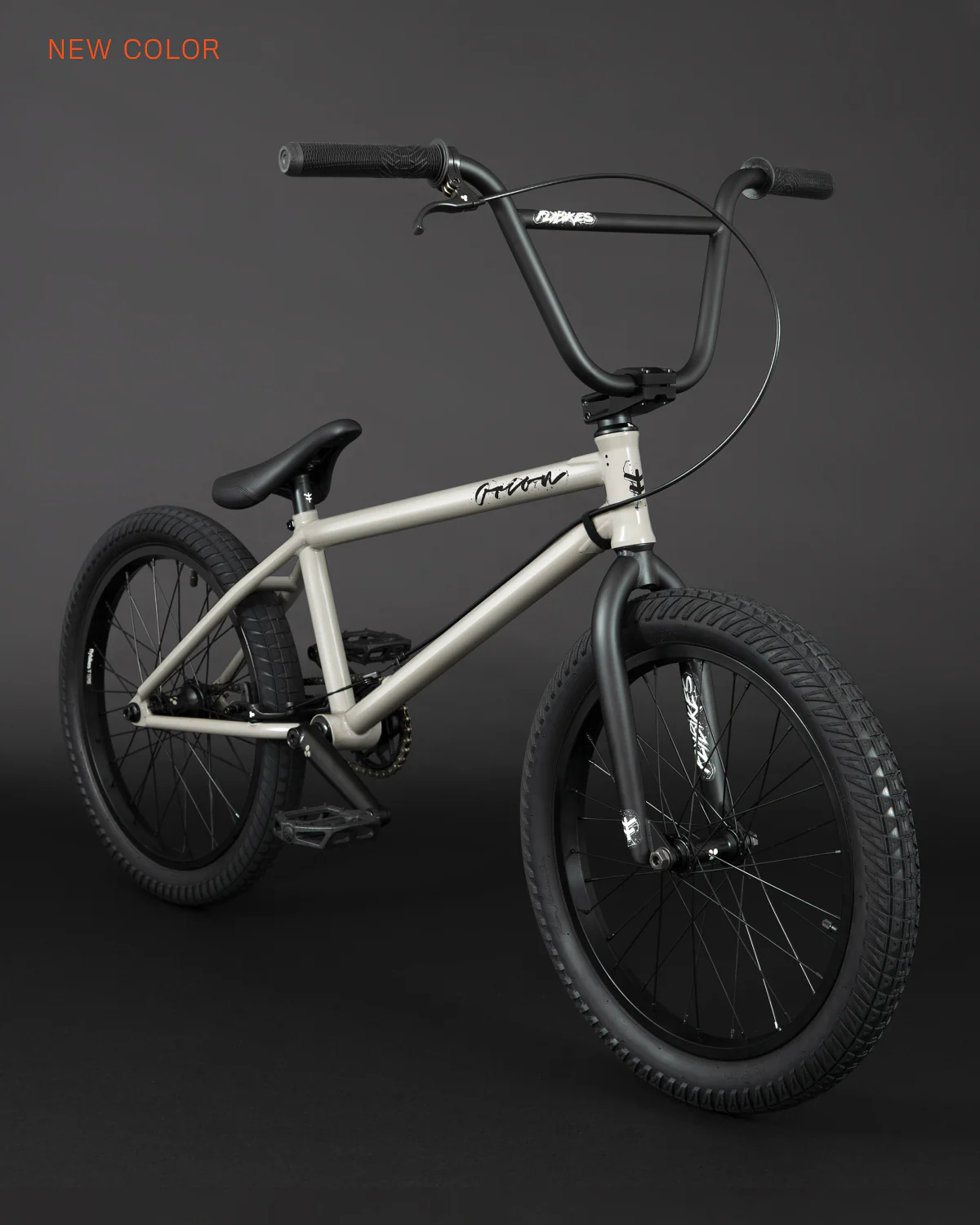

Fly Bikes Orion 20" Complete BMX Bike 2024

This is the way your next top transition BMX looks like. The Orion is one of the adult bikes Fly are most proud of, as it is the result of the inspiration of riders like Sergio Layos and Josh Dove. This design is thought to perfectly fit these top riders, including a Chromoly frame, bars and Fly's new cone shaped fork.

Completed with some of Fly's aftermarket hits, like the Ruben Alcantara signed line, sealed hubs and a removable brake system, this transition freestyle BMX is on the top of the bike market. Don't forget to choose between the right or left hand drive bike depending on your grinding side while riding.

Getting the Fly Orion BMX also ensures you enjoy our shop advantages:

• Easy assembly.
• 100% plastic free packaging.
• Secure payment.

GEOMETRY:
TOP TUBE LENGTH - 21”
CHAIN STAY LENGTH - 13.7”
HEAD TUBE ANGLE - 74.5º
SEAT TUBE ANGLE - 71º
BB HEIGHT - 11.75”
STAND OVER HEIGHT - 9.25”
FORK OFFSET - 32MM.
BAR RISE - 9"
BAR WIDTH - 29”
BAR BACKSWEEP - 10º
BAR UPSWEEP - 2º
_
SPECIFICATIONS:
FRAME - FULL 4130 CRMO / REMOVABLE BRAKE MOUNTS / CHAIN TENSIONERS
FORK - INTEGRATED CONE SHAPE DESIGN / FULL 4130 CRMO / 1 PIECE STEER TUBE
BARS - FULL 4130 CRMO
GRIPS - FLY RUBEN 2 / 160 MM LONG
STEM - FLY VOLCANO 25MM RISE / 50MM REACH / CNC MACHINED / 6061-T6 ALUMINUM
HEADSET - TREBOL / SEALED BEARING / CNC MACHINED / 6061-T6 ALUMINUM
LEVER - TREBOL RIGHT / FORGED / 6061 T-6 ALUMINUM
BRAKE - TREBOL SPRINGHANGER / FORGED / 6061 T-6 ALUMINUM
CRANKS - TREBOL 3PC / 4130 CRMO / 175 MM ARM LENGTH
BOTTOM BRACKET - MID / SEALED BEARING
SPROCKET - FLY TRACTOR TT / CNC MACHINED / 7075-T6 ALUMINUM / 29T
PEDALS - FLY RUBEN GRAPHITE / NYLON - FIBERGLASS COMPOUND
CHAIN - 512 TYPE / 74 LINKS
RIMS - FLY PIRAMIDE / DOUBLE WALL / 6061-T6 ALUMINUM
FRONT HUB - TREBOL BUENO / SEALED BEARING / 3/8” FEMALE AXLE / 36H
REAR HUB - TREBOL BUENO / SEALED BEARING / 14MM FEMALE AXLE / 36H / 9T
TYRES - FLY RUBEN LIGERA 2.40 FRONT / FLY RUBEN 2.25 REAR / 60 TPI / 120 PSI
SEAT - FLY SIERRA 3 SEAT / 100% SYNTHETIC LEATHER / 7 MM THICKNESS
POST - FLY TRIPOD / CNC MACHINED / 6061-T6 ALUMINUM / 135 MM LONG
WEIGHT - 11.4 KG. / 25.1 LB.
