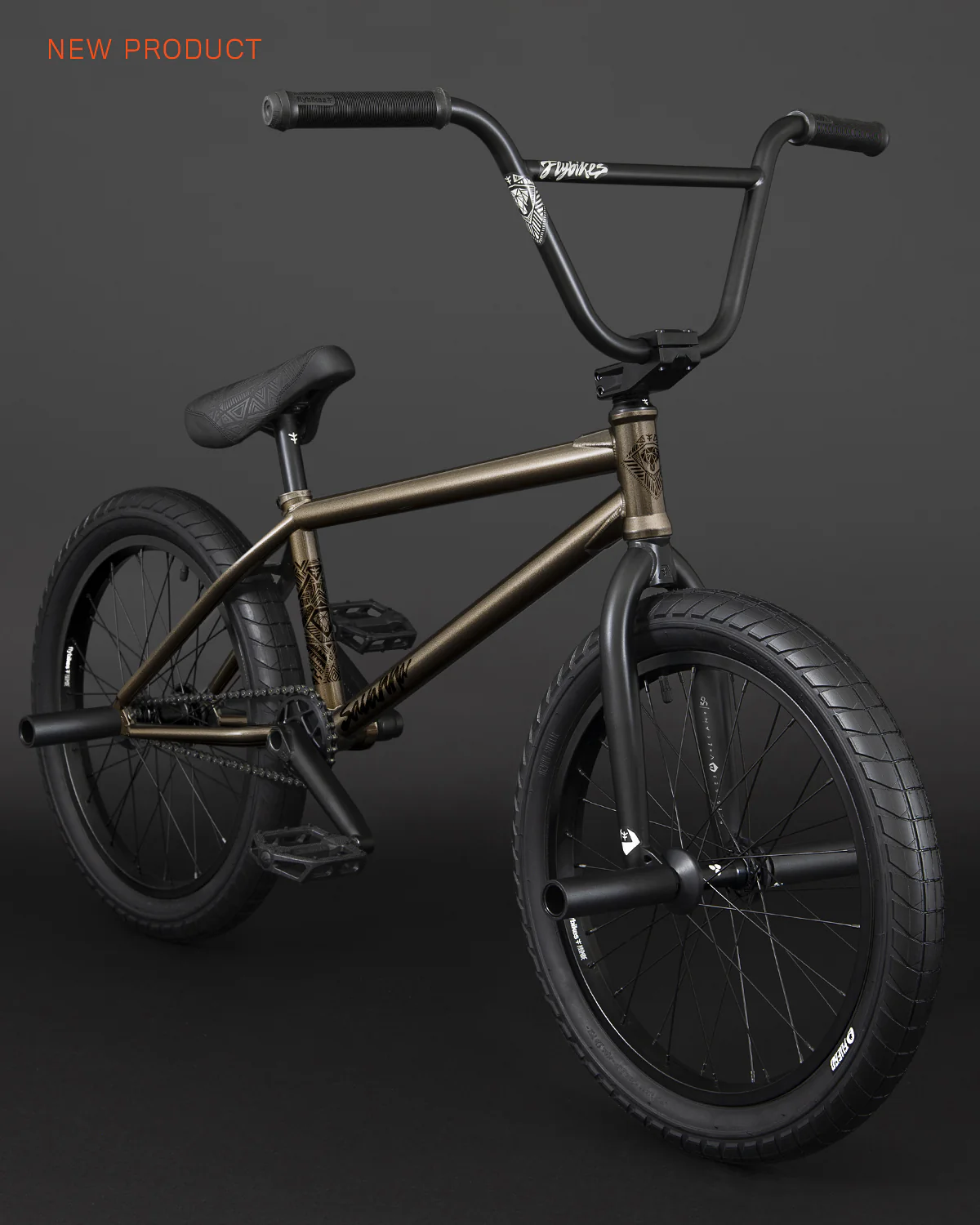

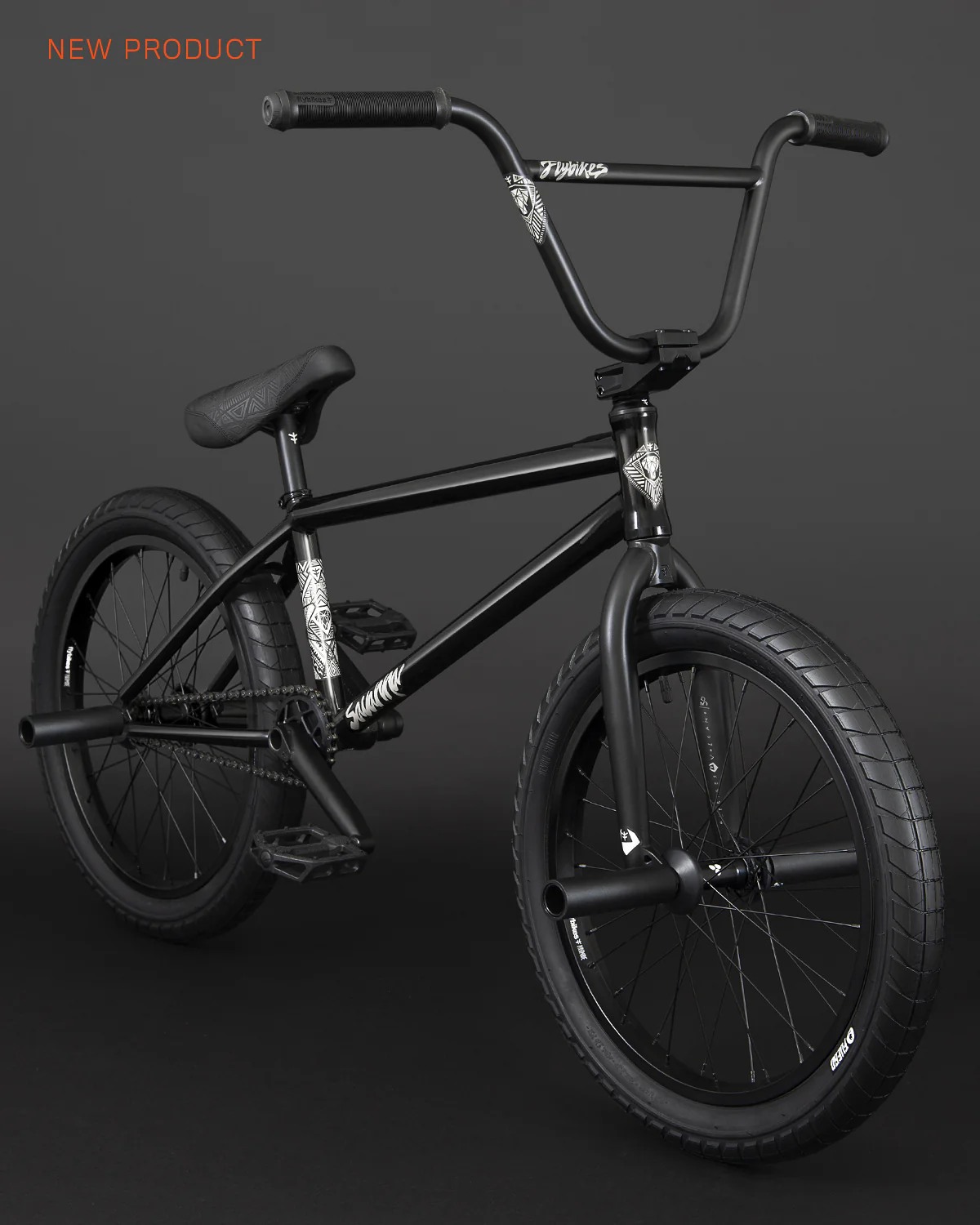

Fly Bikes Savanna 20" Complete BMX Bike 2024
Fly Bikes Savanna 20" Complete BMX Bike 2024
Starting from Courage Adams’ signed Savanna frame, the designing and building of the new Fly Savanna BMX has resulted in one of Fly's best bikes for street BMX. Inspired by the flow of this rider, who also has signature bars and seats. With the Savanna bike, there is no street BMX trick you can’t clear.
In addition, our Fly Volcano product line, which has been a complete success both on design and quality, built the forks, headset and stem of this street beast. And this bike also comes with the same tyres and grips Courage uses, coloured in an amazing dark gold color on this occasion.
GEOMETRY:
TOP TUBE LENGTH - 21”
CHAIN STAY LENGTH - 13”
HEAD TUBE ANGLE - 75.5Âş
SEAT TUBE ANGLE - 71Âş
BB HEIGHT - 11.75”
STAND OVER HEIGHT - 9.25”
FORK OFFSET - 27MM.
BAR RISE - 9.5” / 10”
BAR WIDTH - 29”
BAR BACKSWEEP - 10Âş
BAR UPSWEEP - 2Âş
SPECIFICATIONS:
FRAME - SAVANNA / FULL 4130 CRMO / HEAT TREATED HS, BB / INVEST CASTING HEAT TREATED DROPOUTS
FORK - VOLCANO 30 / FULL 4130 CRMO / 1 PIECE STEERER TUBE CNC / INVEST CASTING HEAT TREATED DROPOUTS
BARS - SAVANNA / FULL 4130 CRMO / MULTIPLE BUTTED
GRIPS - FLY DEVON / 160 MM LONG
STEM - FLY VOLCANO 35MM RISE / 48MM REACH / 6061-T6 ALUMINUM CNC MACHINED
HEADSET - VOLCANO 15 / SEALED BEARING / CNC MACHINED / 6061-T6 ALUMINUM
LEVER - NONE
BRAKE - NONE
CRANKS - DOLMEN 165 MM. / 4130 CRMO / 2.5P CONSTRUCTION / 1P INVEST CASTING ARM
BOTTOM BRACKET - MID / SEALED BEARING
SPROCKET - FLY TRACTOR XL / 7075-T6 ALUMINUM CNC MACHINED / 25T
PEDALS - FLY RUBEN GRAPHITE / NYLON - FIBERGLASS COMPOUND
CHAIN - TRACTOR / 4130 CRMO HEAT TREATED / HOLLOW PINS CHROMIUM TREATMENT / 70 LINKS
RIMS - FLY PIRAMIDE / DOUBLE WALL / 6061 T-6 ALUMINUM
FRONT HUB - TREBOL FEMALE / SEALED BEARING / 3/8” FEMALE AXLE / 36H
REAR HUB - TREBOL MALE CASSETTE / SEALED BEARING / 14MM AXLE / 36H / 9T
TIRES - FLY FUEGO 2.30 FRONT & REAR / 60 TPI / 120 PSI
SEAT - FLY SAVANNA TRIPOD / 100% SYNTHETIC LEATHER / 25 MM THICKNESS
POST - FLY TRIPOD / CNC MACHINED / 6061 T-6 ALUMINUM / 135 MM LONG
PEGS - TREBOL / NYLON SLEEVE / 2 PAIR
HUB GUARDS - NYLON / 2 FRONT & 2 REAR
WEIGHT 21" / 9.5" VERSION - 12.4 KG / 27.4 LB
Original: $1,136.00
-65%$1,136.00
$397.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fly Bikes Savanna 20" Complete BMX Bike 2024
Starting from Courage Adams’ signed Savanna frame, the designing and building of the new Fly Savanna BMX has resulted in one of Fly's best bikes for street BMX. Inspired by the flow of this rider, who also has signature bars and seats. With the Savanna bike, there is no street BMX trick you can’t clear.
In addition, our Fly Volcano product line, which has been a complete success both on design and quality, built the forks, headset and stem of this street beast. And this bike also comes with the same tyres and grips Courage uses, coloured in an amazing dark gold color on this occasion.
GEOMETRY:
TOP TUBE LENGTH - 21”
CHAIN STAY LENGTH - 13”
HEAD TUBE ANGLE - 75.5Âş
SEAT TUBE ANGLE - 71Âş
BB HEIGHT - 11.75”
STAND OVER HEIGHT - 9.25”
FORK OFFSET - 27MM.
BAR RISE - 9.5” / 10”
BAR WIDTH - 29”
BAR BACKSWEEP - 10Âş
BAR UPSWEEP - 2Âş
SPECIFICATIONS:
FRAME - SAVANNA / FULL 4130 CRMO / HEAT TREATED HS, BB / INVEST CASTING HEAT TREATED DROPOUTS
FORK - VOLCANO 30 / FULL 4130 CRMO / 1 PIECE STEERER TUBE CNC / INVEST CASTING HEAT TREATED DROPOUTS
BARS - SAVANNA / FULL 4130 CRMO / MULTIPLE BUTTED
GRIPS - FLY DEVON / 160 MM LONG
STEM - FLY VOLCANO 35MM RISE / 48MM REACH / 6061-T6 ALUMINUM CNC MACHINED
HEADSET - VOLCANO 15 / SEALED BEARING / CNC MACHINED / 6061-T6 ALUMINUM
LEVER - NONE
BRAKE - NONE
CRANKS - DOLMEN 165 MM. / 4130 CRMO / 2.5P CONSTRUCTION / 1P INVEST CASTING ARM
BOTTOM BRACKET - MID / SEALED BEARING
SPROCKET - FLY TRACTOR XL / 7075-T6 ALUMINUM CNC MACHINED / 25T
PEDALS - FLY RUBEN GRAPHITE / NYLON - FIBERGLASS COMPOUND
CHAIN - TRACTOR / 4130 CRMO HEAT TREATED / HOLLOW PINS CHROMIUM TREATMENT / 70 LINKS
RIMS - FLY PIRAMIDE / DOUBLE WALL / 6061 T-6 ALUMINUM
FRONT HUB - TREBOL FEMALE / SEALED BEARING / 3/8” FEMALE AXLE / 36H
REAR HUB - TREBOL MALE CASSETTE / SEALED BEARING / 14MM AXLE / 36H / 9T
TIRES - FLY FUEGO 2.30 FRONT & REAR / 60 TPI / 120 PSI
SEAT - FLY SAVANNA TRIPOD / 100% SYNTHETIC LEATHER / 25 MM THICKNESS
POST - FLY TRIPOD / CNC MACHINED / 6061 T-6 ALUMINUM / 135 MM LONG
PEGS - TREBOL / NYLON SLEEVE / 2 PAIR
HUB GUARDS - NYLON / 2 FRONT & 2 REAR
WEIGHT 21" / 9.5" VERSION - 12.4 KG / 27.4 LB
