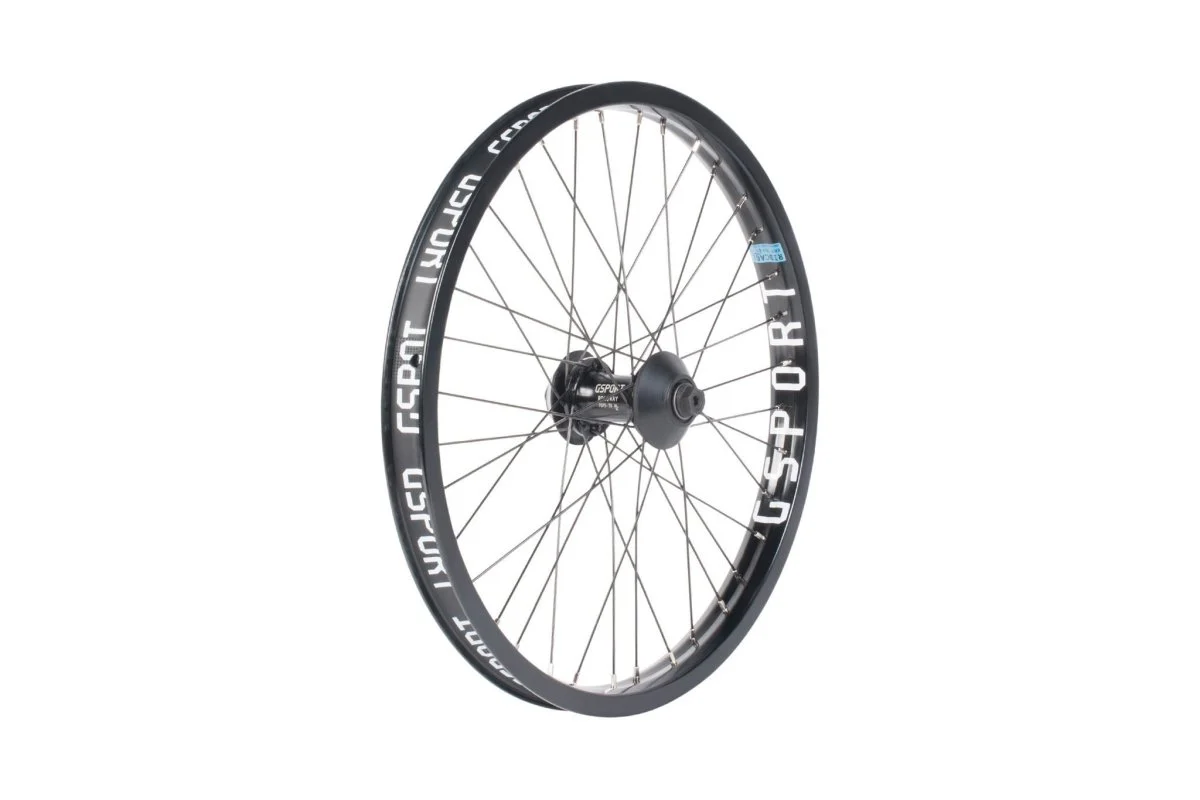

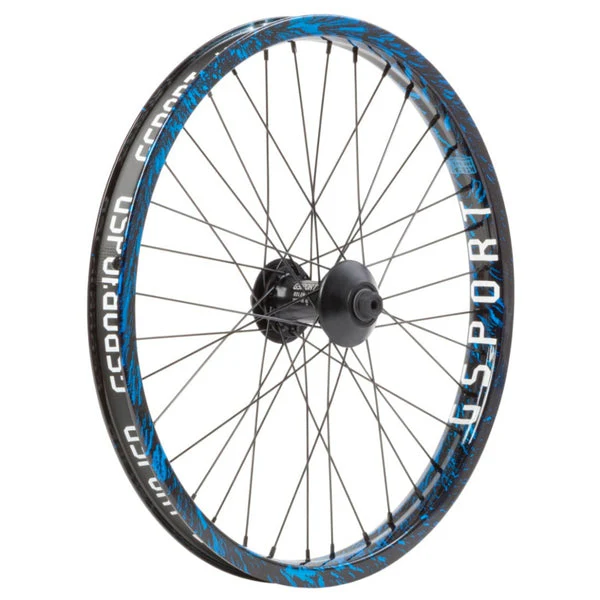

Gsport Elite Front Wheel
Gsport Elite Front Wheel
If you take the Ribcage rim and lace it to the Roloway front hub, youāll end up with one of theĀ strongest front wheels you can get.
Matches the Elite FCĀ and Elite CSST rear wheels.
Comes stock with Gsports High Pressure Rim Strips.
Roloway Front Hub
The new Roloway hub is a precision sealed front hub with 3/8ā in-bound axle bolts and two plastic hub guards. An oversized axle, bearing configuration and 7075-T6 aluminium hub shell is used for unmatched durability.
Roloway Hub Specifications
Spoke Configuration: 36 holeHub Shell Material: 7075-T6 aluminium
Hub Shell Bearings: 6804RS sealed cartridge ball bearing
Axle: 20mm 7075-T6 aluminium female axle with steel helicoiled threads.
Axle Bolts: 3/8ā³ heat-treated 4130 chromoly axle bolts
Guard Option: Plastic hub guards included
Flange Diameter Left: 44mm
Flange Diameter Right: 44mm
CentreĀ to Flange Left:28mm
CentreĀ to Flange Right: 28mm
Weight: 340g / 12 oz
RibcageĀ Rim
The Ribcage is Gsport's strongest rim. It features thick outer walls, cross-over-spoke lacing, and their patented āRibā design.
Ribcage Rim Specifications
Sizes: 20" onlyDrillings:Ā 36 and 48
Weight:Ā 500g / 17.6oz
Width:Ā 36mm
Height:Ā 18mm
ERD:Ā 389mm
U.S. Patent 7,427,112
Original: $234.00
-65%$234.00
$81.90Product Information
