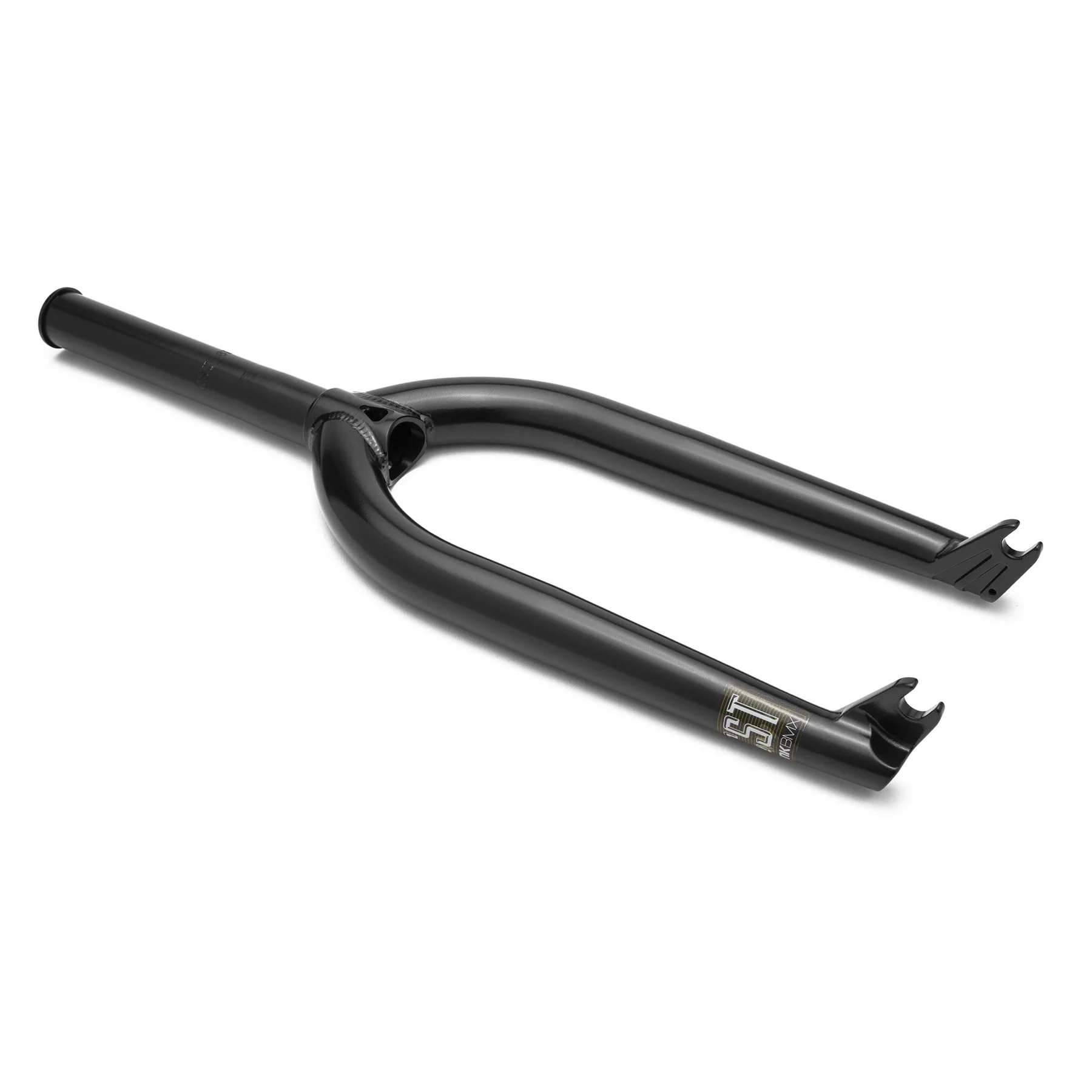

Kink CST Forks - Black 10mm

Kink CST forks - Black 10mm (CST being short for CAST) aren’t your average forks. The first standout feature on these forks are the dropouts which are invest cast, allowing for a design to greatly increase the strength without adding too much weight or bulk. These dropouts are all about putting the material where you need it, and not where you don’t.

In addition to the dropouts, the forks feature tapered and internally butted fork legs, a one piece fully CNC machined steerer tube, fork blade ends relieved for peg clearance and flush inner fork legs for great hub guard clearance. A custom formed fork leg profile also improves fork leg and steerer tube junction strength by adding increased welding surface.

Specifications

• Fork Height 315mm
• Steerer Tube 165mm
• Length Dropout 28mm
• Dropout Slot 3/8" (10mm)
• Bearing Race Integrated Campy Spec
• Compression Bolt Thread M24×1.5mm
• Compression Bolt Hex 7075-T6 3/8" Ratchet and 6mm
• Tubing Material 100% 4130 Chromoly Steel
• Heat Treatment TruTherm Post Weld Heat Treated
• Particulars Tapered Fork Legs with Internal Butting
• 6mm Investment Cast Dropouts
• Flush Dropout and Leg Junction for Hub Guard Clearance
• Weight 34.8oz (Including Fork Bolt)
