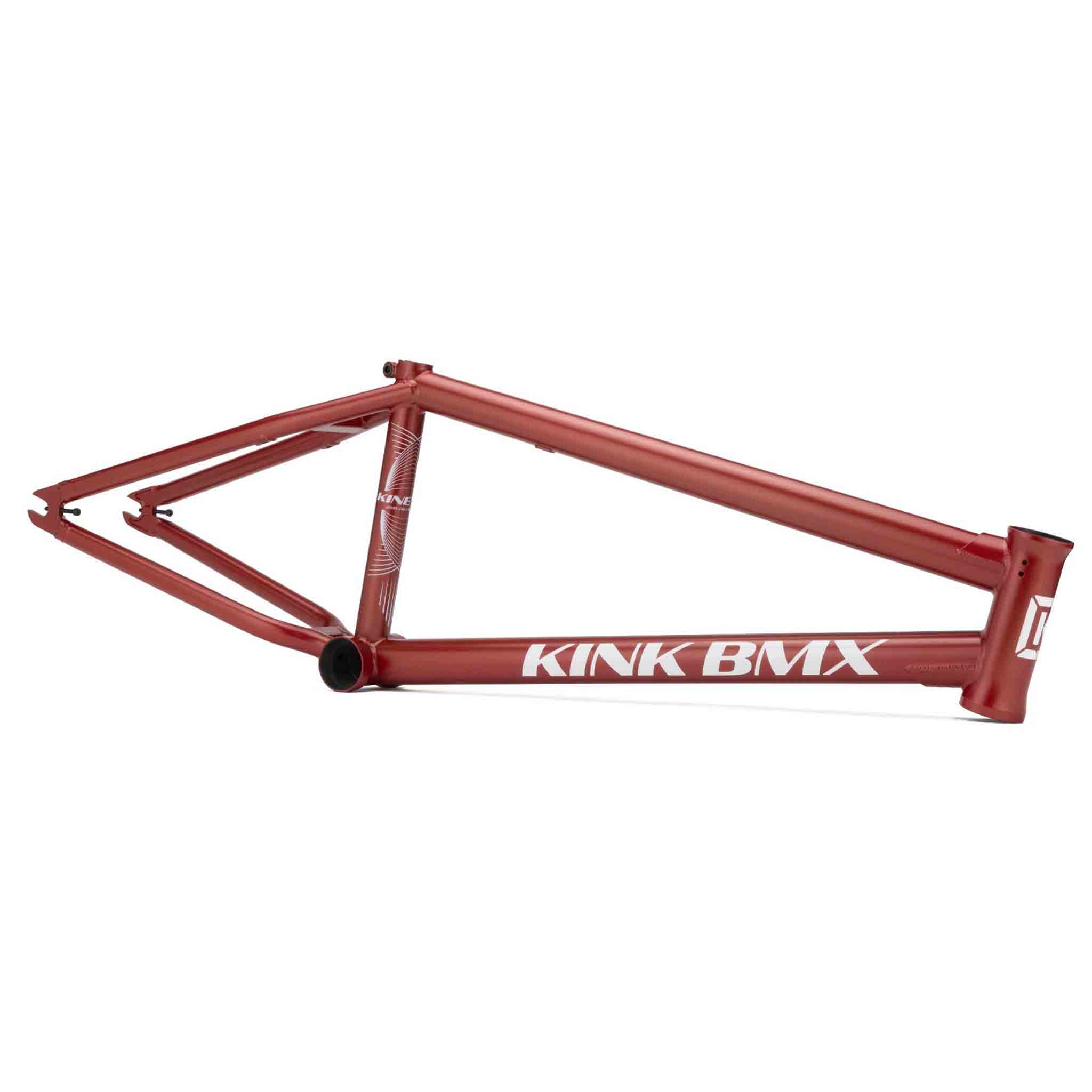

Kink Kinetic Frame - Sunrise Red
Kink Kinetic Frame - Sunrise Red
The Kink Kinetic frame is the signature BMX frame from street rider Jacob Cable. Jacob's Kink frame has been designed to perfectly suit his unique style of technical street riding with a steep 75.5 degree headtube angle and a short 13" rear triangle. This geometry makes this frame both responsive while still being stable.
This Kink frame also features oval shaped top and down tubes which adds additional strength where needed while keeping weight down. The Kinetic frame features a regular down tube headset gusset and a much smaller top tube gusset as this area doesn't need as much support. Another unique feature of this BMX frame is the square tubing used for both the seat stay and chain stay bridges, the larger area of these tubes helps to increase the strength and make the rear end stiffer.
Please note due to this being a clear coat frame there may be minor cosmetic defects below the clear finish, please bear this in mind when choosing this colour option
Chainstay Length: 13” Slammed
Bottom Bracket Height: 11.7”
Standover Height: 9”
Headtube Height: 5”
Headtube Angle: 75.5°
Seattube Angle: 71°
Material: 100% Seamless Sanko 4130 Chromoly Tubing
Headtube: Integrated Campy Spec
Dropouts: Investment Cast with Integrated Chain Tensioners
Bottom Bracket: Internally and Externally Machined Mid BB
Braking: Removable Through-Bolt Brake Mount System
Particulars: Toptube and Downtube Gussets,Widened Stays for Big Tire Clearance Integrated Seat Post Clamp Square Formed Seatstay and Chainstay Bridges
Weight:4lb 15oz (20.5”)
