Radio Race Helium Cruiser Complete BMX Bike 22"TT

Radio Race Helium Cruiser Complete Bike 22"TT

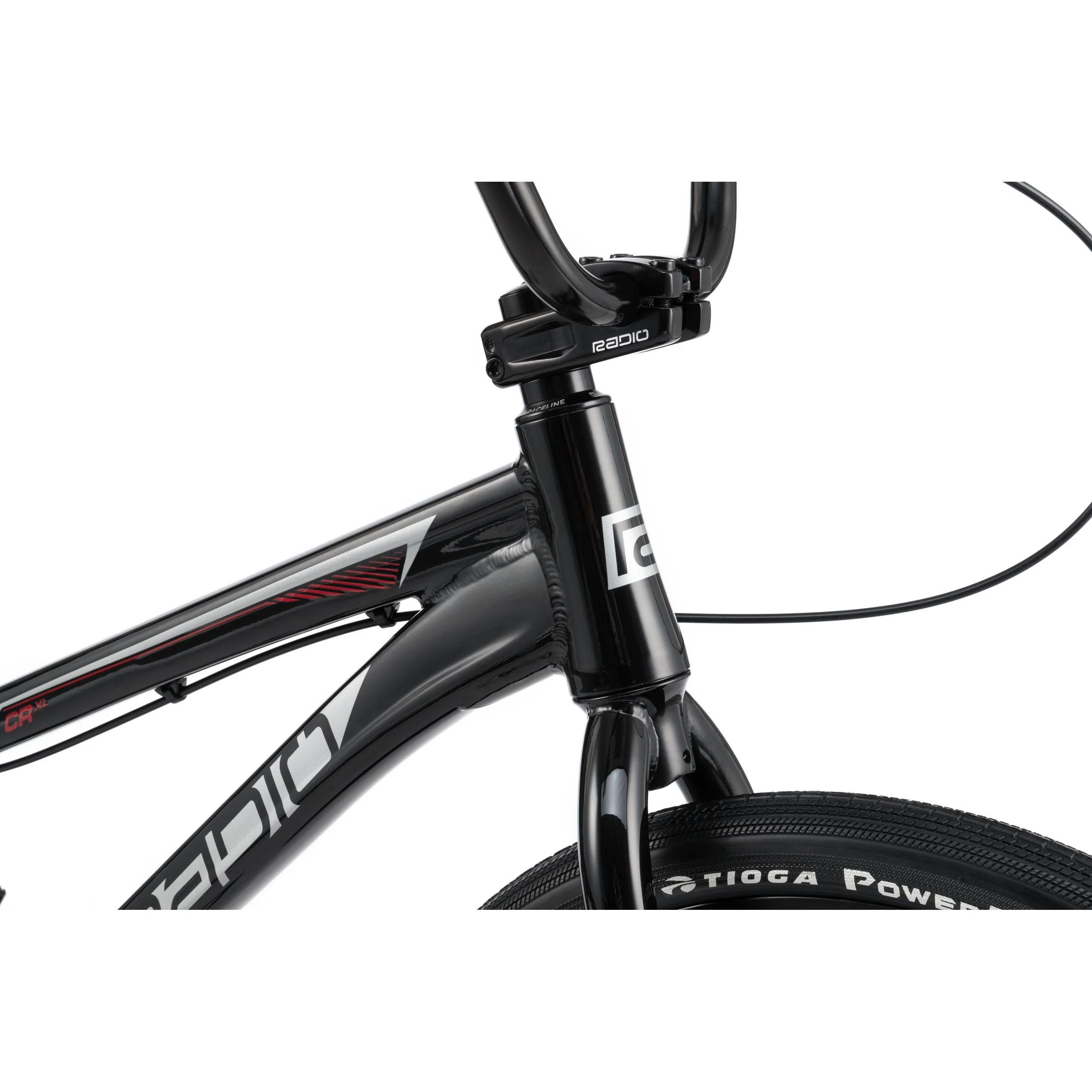

• FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners
• FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset
• HANDLEBAR: 4130 crmo bar, seamless
• GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
• STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
• HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5",  including fork crown race 1.5"-1 1/8" converter
• BRAKE LEVER: PROMAX "XL-373" brake lever, rear

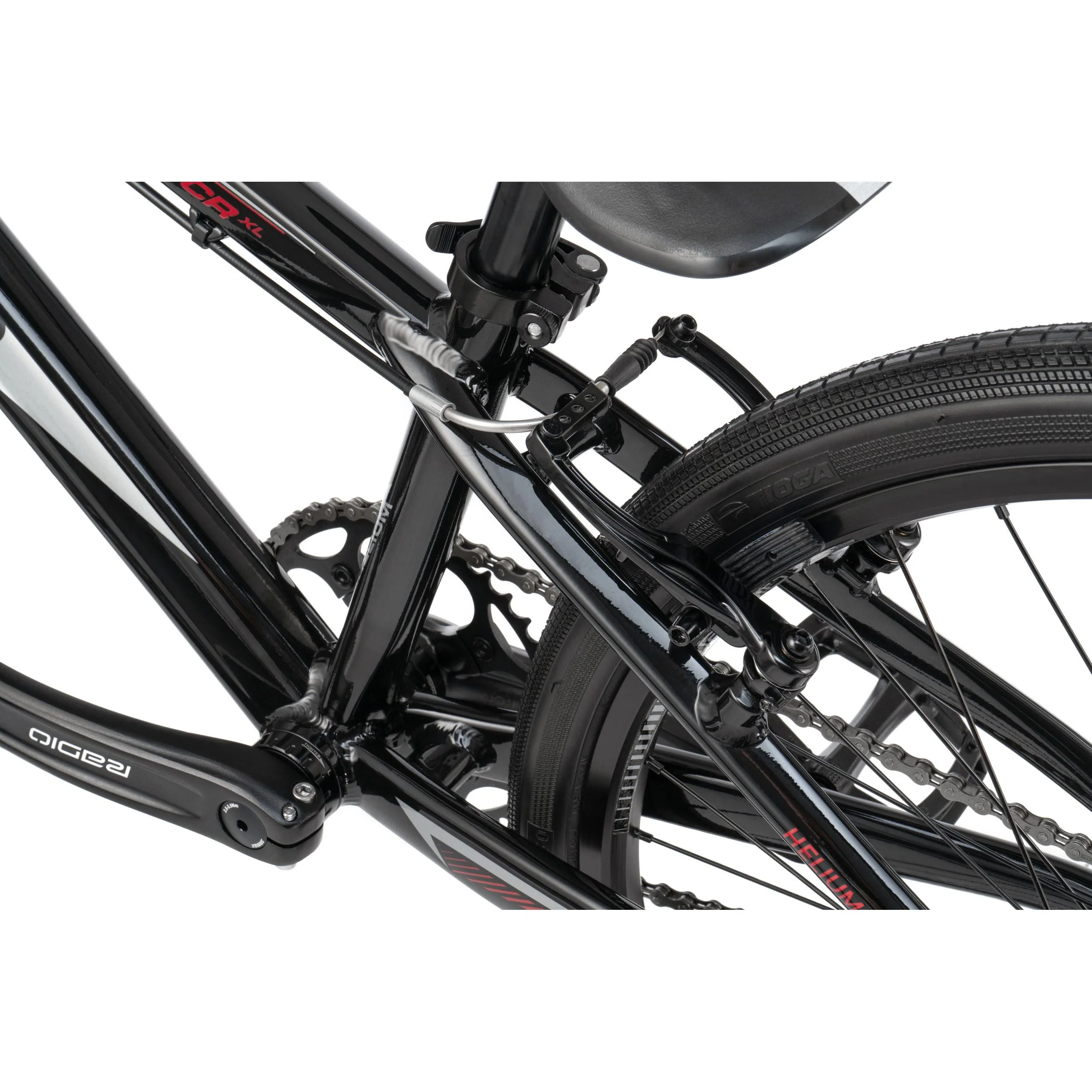

• BRAKE: PROMAX "TX-131" brake, rear

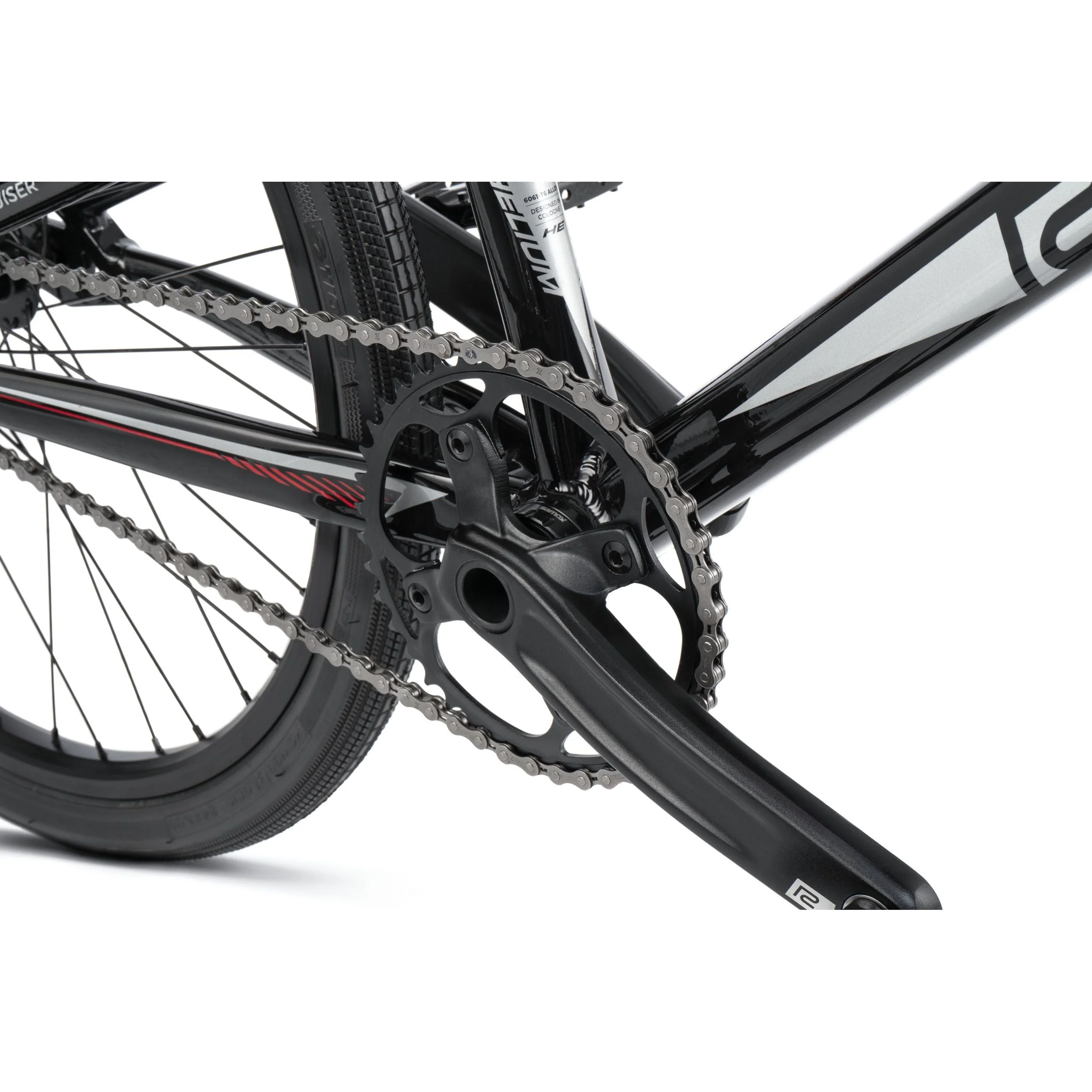

• CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
• BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
• PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
• CHAIN: KMC "Z6" chain, 1/2" x 3/32"
• SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 41T, alloy
• DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
• FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle

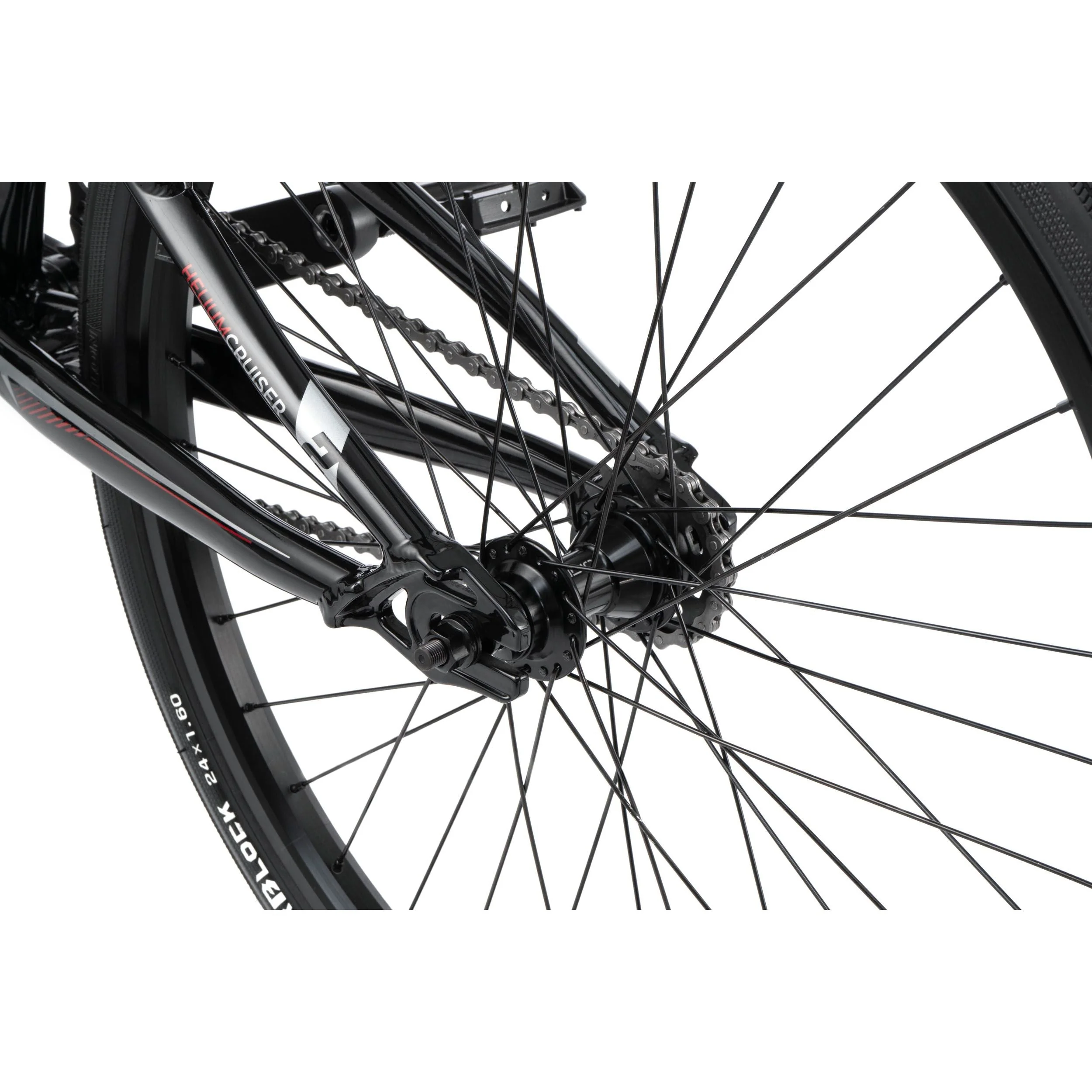

• REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
• FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
• REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy

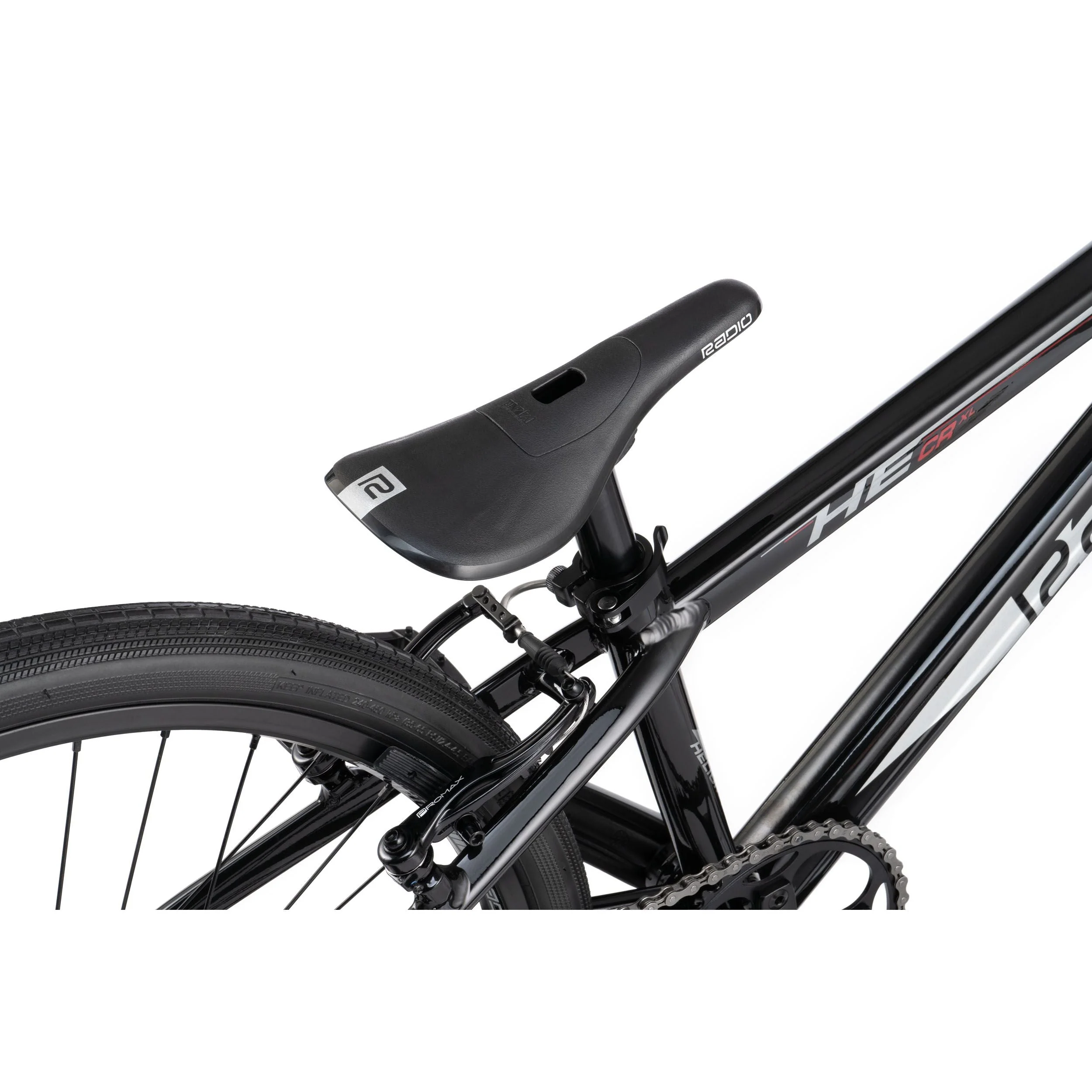

• SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
• SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
• SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
• TIRES: RADIO RACELINE "OXYGEN" tires, front: 20" x 1.75" and rear: 20" x 1.6"

Weight: 10.24kg / 22.79lbs

Frame Geometry:



Handlebar Geometry:
