Radio Bikes Race Quartz Pro XL Complete BMX Bike 20"

Radio Bikes Race Quartz Pro XL Complete BMX Bike 20"

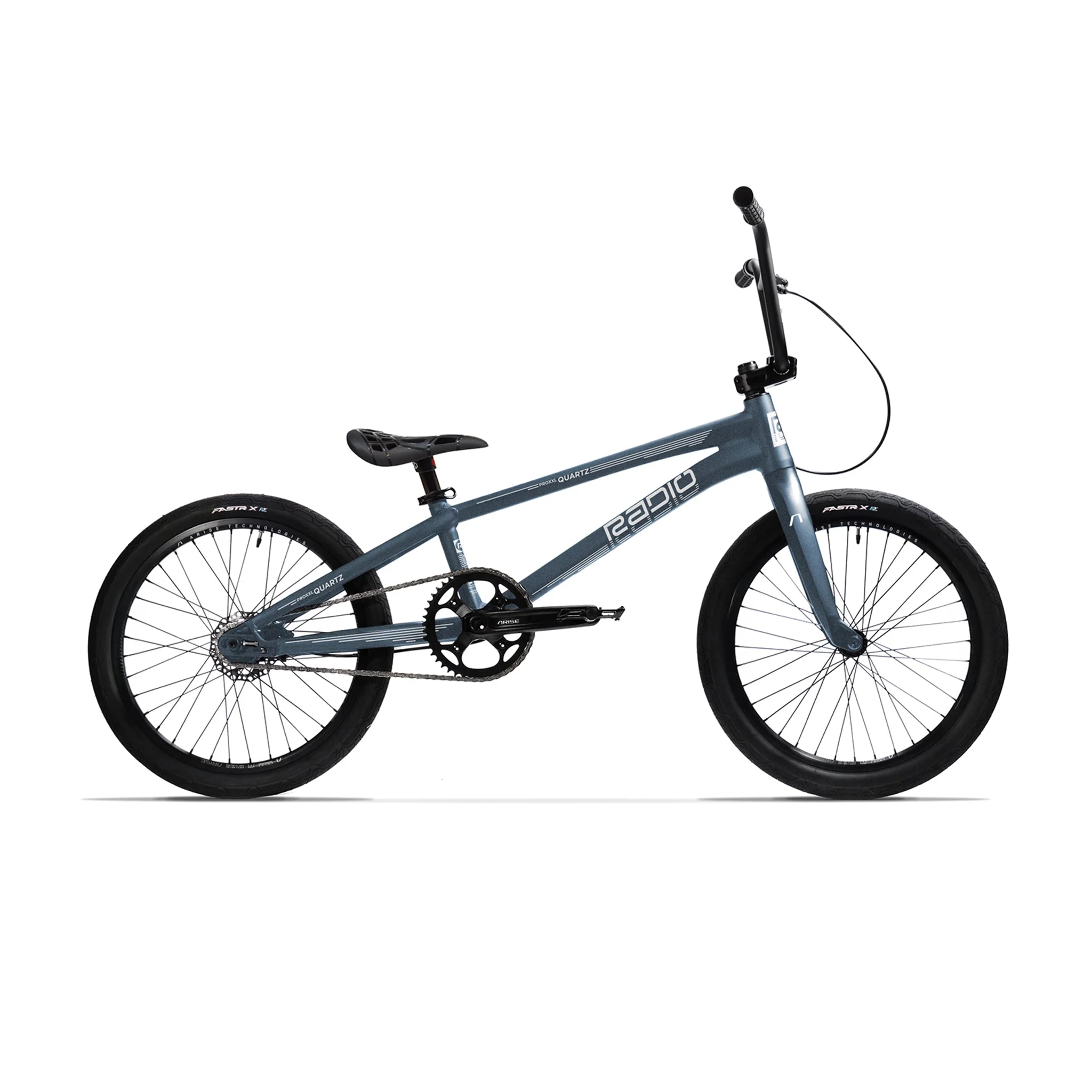

Radio Race QUARTZ PRO XL is a 20-inch BMX race bike built on a lightweight hydroformed 6061-T6 aluminium frame with tapered head tube, sliding forged dropouts, and flatmount disc brake compatibility. It is equipped with an aluminium fork and a sealed cassette drivetrain system. The XL configuration is designed for larger riders, with a total weight of 9.4 kg and 20x1.75/1.6" tires.

• Frame: Hydroformed 6061-T6 aluminium, tapered head tube, sliding forged dropouts, integrated chain tensioners, flatmount disc brake mounts
• Fork: Arise Quartz Pro, aluminium, 31 mm offset
• Handlebar: Radio Raceline Neon Pro, 8" rise, hydroformed, multi-butted heat-treated chromoly
• Grips: Radio Raceline Xenon, diamond knurling, clamp-on, 139 mm
• Stem: Arise Neon Pro toploader, CNC machined aluminium, 54 mm extension
• Headset: Radio Raceline Pro integrated, sealed, 1-1/8"–1.5"
• Brake lever: Arise Xenon disc brake lever
• Brake: Arise Xenon disc brake, rear only
• Crankset: Arise Xenon Pro 2-piece, cold forged CNC aluminium, 180 mm, 24 mm spindle
• Bottom bracket: Radio Raceline BSA 24, external bearing cups, CNC machined, sealed
• Pedals: Radio Raceline Xenon Slim, aluminium
• Chain: KMC Z1eHX, 1/2 x 3/32"
• Sprocket: Arise Xenon Pro, aluminium, 44T
• Driver: Radio Raceline cassette driver, 16T, sealed, 1/2 x 3/32"
• Front hub: Arise Bravo, CNC aluminium, sealed, 36H, 3/8" female chromoly axle
• Rear hub: Arise Bravo, CNC aluminium, sealed, 36H, disc brake cassette, 6-pawl, 3/8" female chromoly axle
• Rims: Arise Argon Pro, flash welded, 36H aluminium, tubeless ready
• Seat: Radio Raceline Seat & Seatpost combo
• Seat clamp: Arise Helium Pro, quick-release aluminium
• Tires: Tioga FASTR 20x1.75/1.6"
