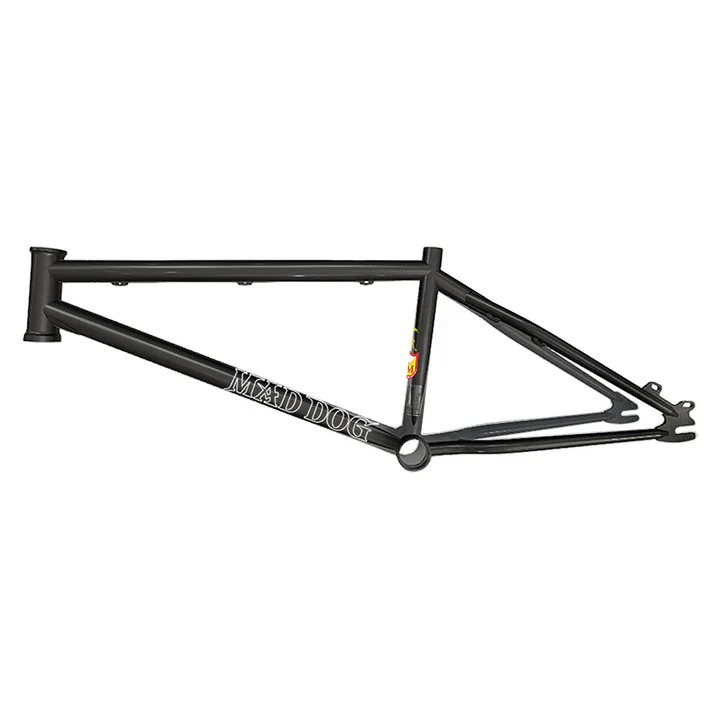

S&M Mad Dog 22" Frame Black
S&M Mad Dog 22" Frame Black
Ā
Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor, 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment on the 22" wheeled version is 36 tooth. Max tire width on the 22" wheeled version is 22" X 2.35". Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.Ā
- TOP TUBE LENGTHS: 21.75" 22" 22.25" 22.5"
REAR END LENGTH: 14.15"
- HEAD TUBE ANGLE: 74.25Ā°
- STANDOVER HEIGHT: 10"
- B.B. HEIGHT: 11.8"
- SEAT TUBE ANGLE: 71Ā°
- HEAD TUBE: 5" Tall Integrated Campy Style
- B.B. STYLE: Mid
- BRAKE MOUNTS: Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor 140mm Rotor with 20mm IS to POST mount adaptor.
- DROPOUTS: 3/8"
- SEAT POST SIZE: 1" / 25.4mm - Frame slotted for 28.6mm Seatpost Clamp
- WEIGHT: 5.1 lbs
- MAX TIRE: 22X2.35"
- MAX SPROCKET: 36T
Original: $651.00
-65%$651.00
$227.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
S&M Mad Dog 22" Frame Black
Ā
Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor, 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment on the 22" wheeled version is 36 tooth. Max tire width on the 22" wheeled version is 22" X 2.35". Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.Ā
- TOP TUBE LENGTHS: 21.75" 22" 22.25" 22.5"
REAR END LENGTH: 14.15"
- HEAD TUBE ANGLE: 74.25Ā°
- STANDOVER HEIGHT: 10"
- B.B. HEIGHT: 11.8"
- SEAT TUBE ANGLE: 71Ā°
- HEAD TUBE: 5" Tall Integrated Campy Style
- B.B. STYLE: Mid
- BRAKE MOUNTS: Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor 140mm Rotor with 20mm IS to POST mount adaptor.
- DROPOUTS: 3/8"
- SEAT POST SIZE: 1" / 25.4mm - Frame slotted for 28.6mm Seatpost Clamp
- WEIGHT: 5.1 lbs
- MAX TIRE: 22X2.35"
- MAX SPROCKET: 36T
