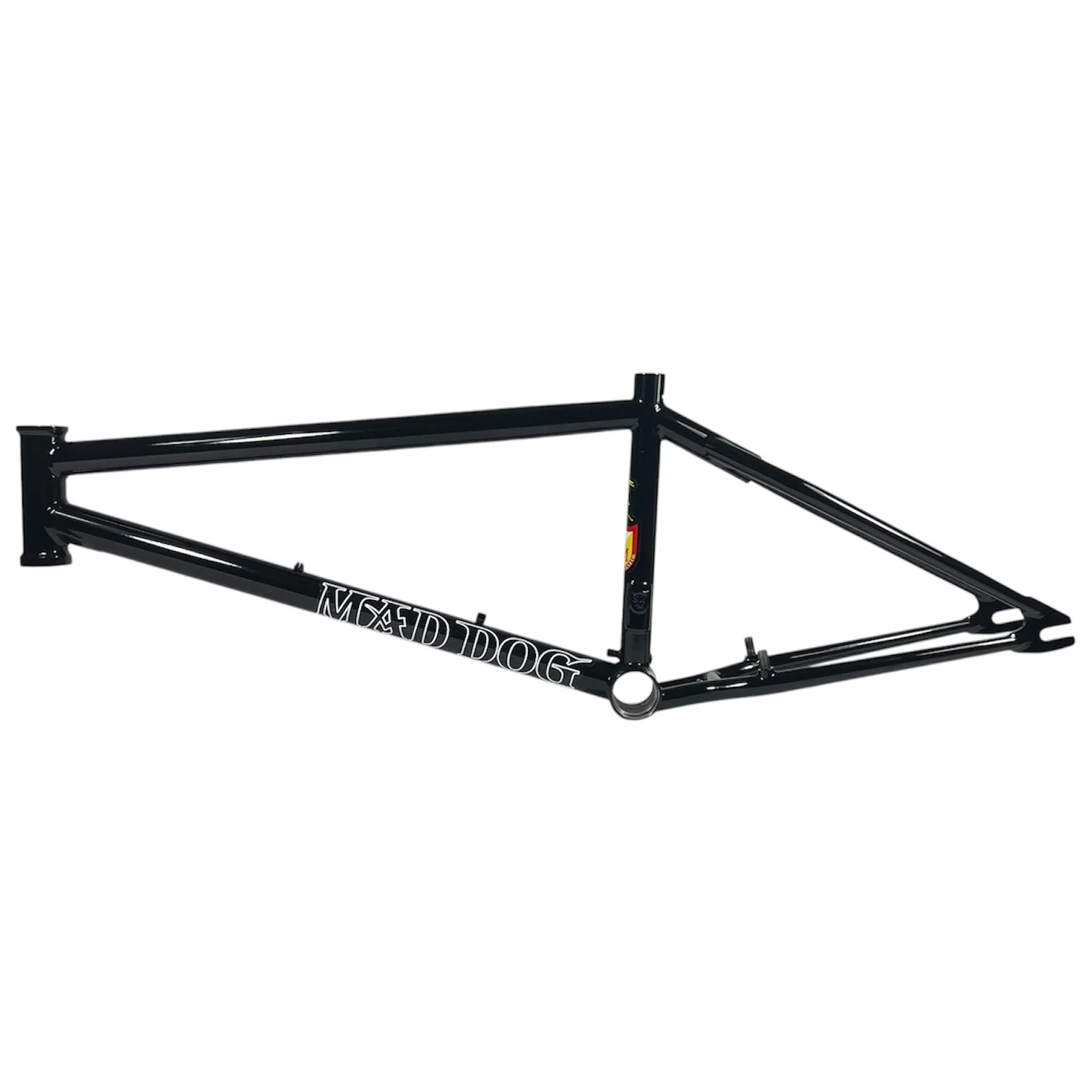

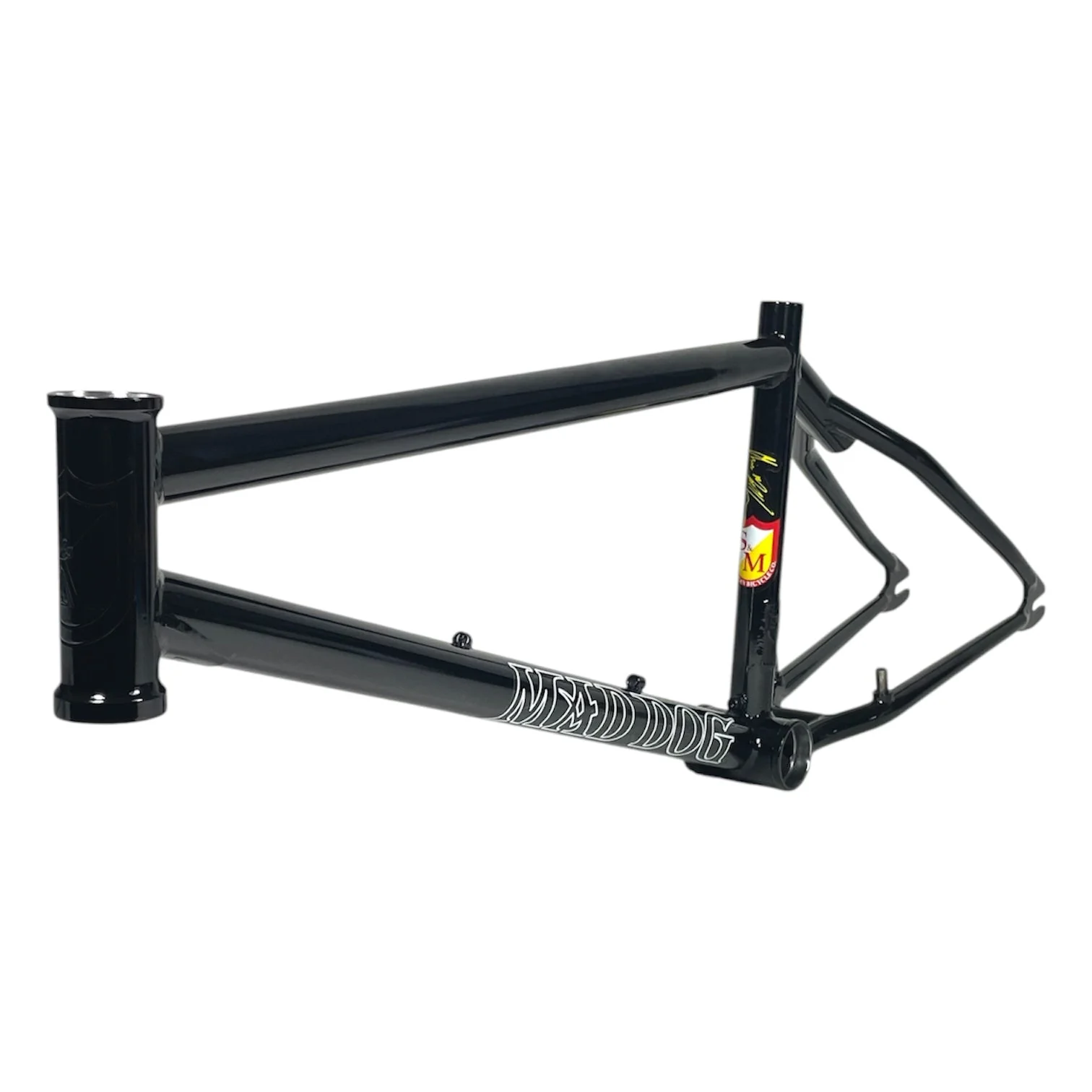

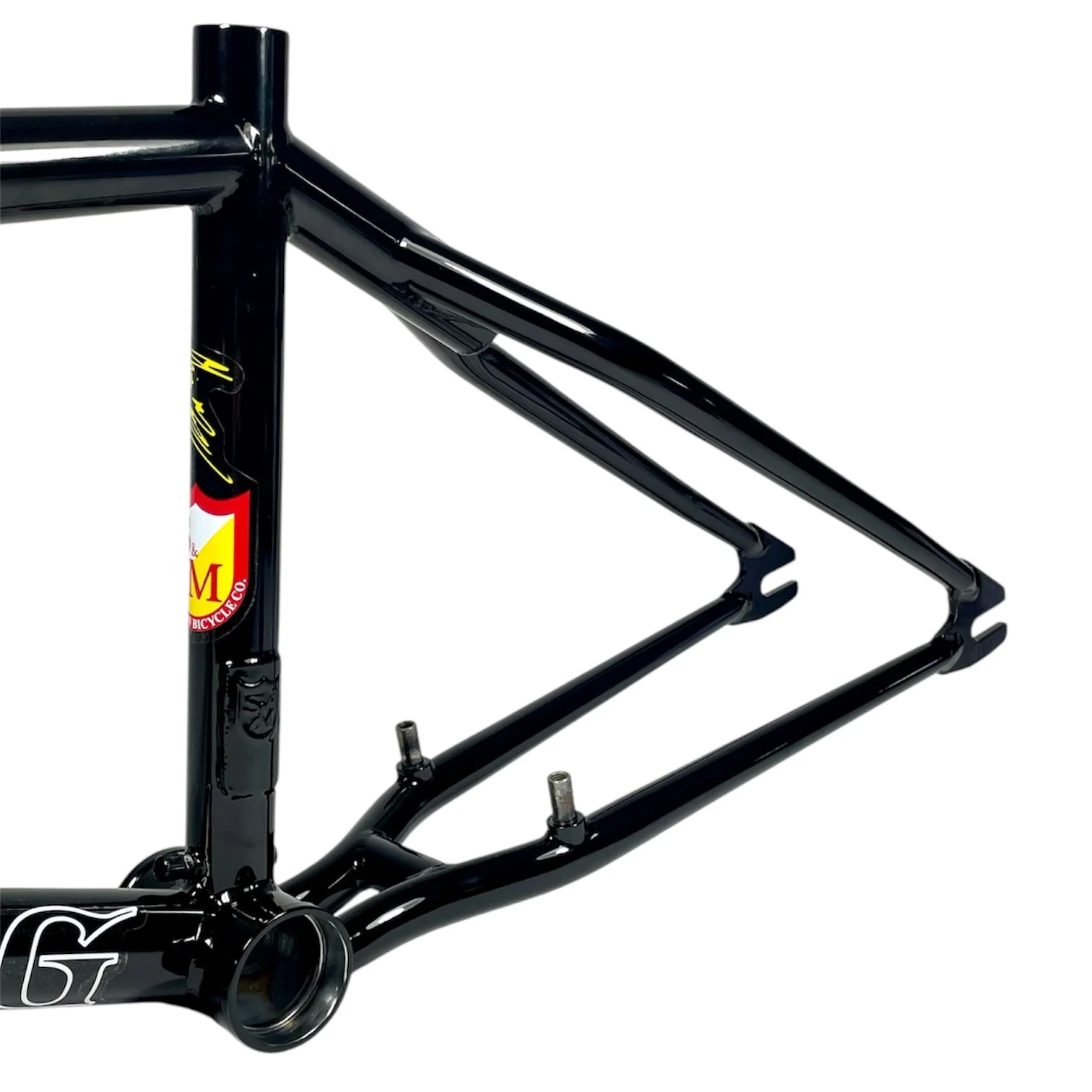

S&M Mad Dog Frame 990 Mounts - Gloss Black

S&M Mad Dog Frame 990 Mounts Gloss Black

Throw a dog a wishbone chain-stay 990 mounts and a tall stand-over but keep it light (sub 5lbs) and youve got yourself the reincarnated Chris "Mad Dog" Moeller frame. It only took 36 years for S&Ms Top Dawg to drop another bike custom-crafted for his breed of biking but much like the original its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.

• Engraved Shield on Headtube. Engraved 87 on BB shell. MAD DOG-tag on seat-tube
• Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm and accepts 3/8" axle.
• TOP TUBE LENGTHS: 20.5" 21" 21.25" 21.5" 21.75" 22"
• REAR END LENGTH: 13.9"
• HEAD TUBE ANGLE: 74.25°
• STANDOVER HEIGHT: 10"
• B.B. HEIGHT: 11.6"
• SEAT TUBE ANGLE: 71°
• HEAD TUBE: 5" Tall Integrated Campy Style
• B.B. STYLE: Mid
• BRAKE MOUNTS: Chain-stay 990
• DROPOUTS: 3/8"
• SEAT POST SIZE: 1" / 25.4mm
