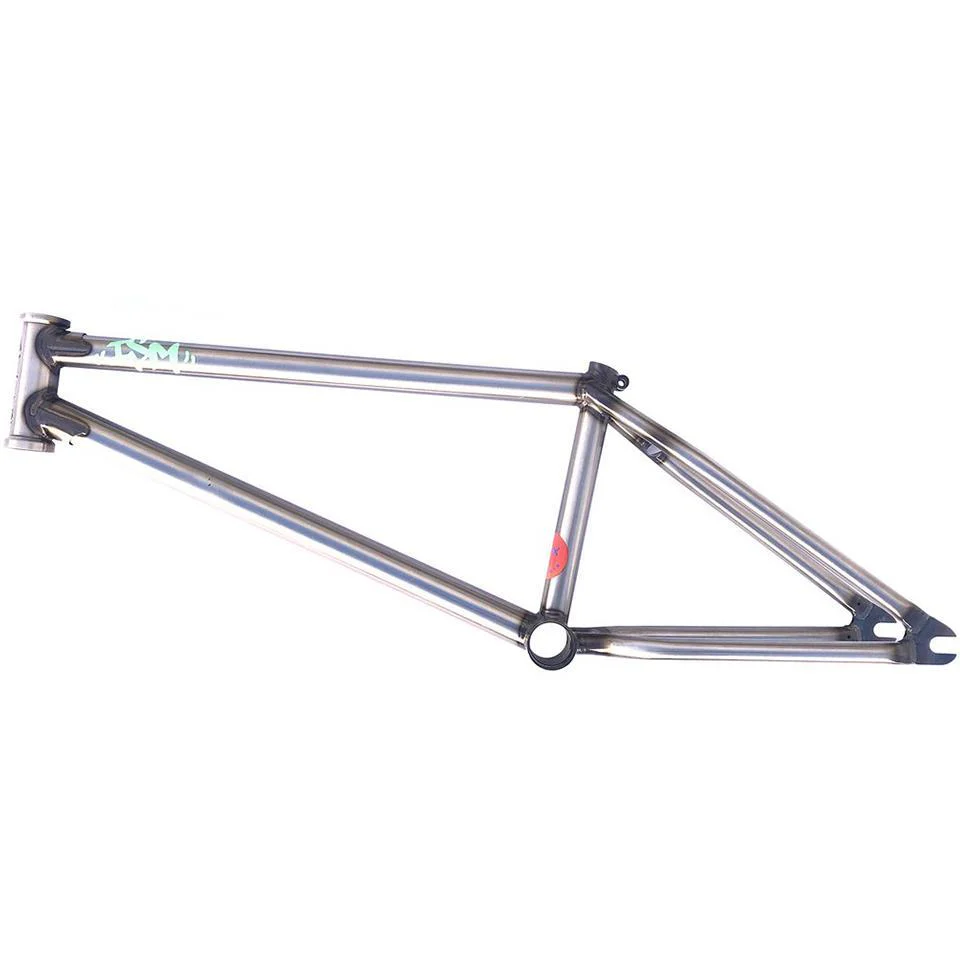

Stranger ISM Frame - Gloss Raw

Stranger ISM Frame - Gloss Raw

Classic street-oriented frame. Made from 100% straight-gauge chromoly tubing. Engraved 5"-tall integrated headtube. Mid bottom bracket shell. No brake mounts. 6mm thick laser-cut dropouts for 14mm axles. Integrated chain tensioners. Designed in collaboration with ISM cycling.

Stranger "ISM" BMX Frame

• Wheel Size: 20"
• Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, integrated seatclamp
• Geometry:
  Top Tube (TT): 20.75" or 21.0" (selectable as an option)
  Chain Stay (CS): 13.01" (slammed)
  Head Tube Angle (HA): 75.5°
  Seat Tube Angle (SA): 70°
  BB Height: 11.6"
  Standover Height (SO): 9.5"
• Seat Clamp: integrated
• Seat Post Diameter: 25.4mm
• Bottom Bracket: Mid BB
• Dropouts: 6mm thick, 14mm slots
• Chain Tensioners: without
• Brakemounts: without (Brakeless)
