Subrosa MR2 Frame - Matt Trans Orange

Subrosa MR2 Frame - Matt Trans Orange

The Subrosa Bikes "MR2" BMX Frame - Matte Trans Orange is Matt Ray's signature frame which is made of 100% 4130 CrMo and utilizing a 13.4" slammed rear end, and double butted top and down tube.

• Wheel Size: 20"

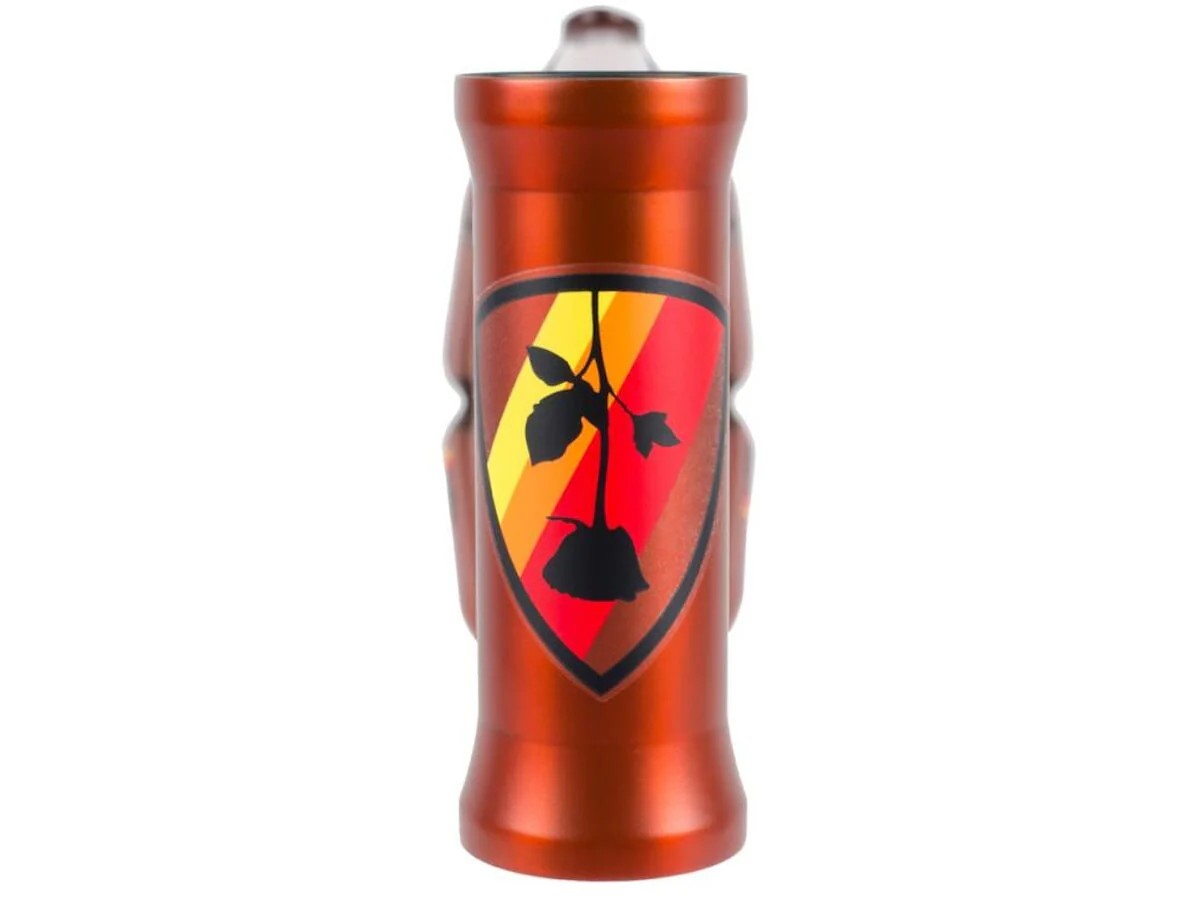

• Material: 100% 4130 Sanko CrMo, top tube and down tube gussets, butted tubes, integrated headset, removable brake hardware, Mid BB
• Geometry:
  Top Tube (TT): 20.5" or 21.2"
  Chain Stay (CS): 13.4" (fully slammed)
  Head Tube Angle (HA): 75°
  Seat Tube Angle (SA): 71°
  BB Height: 11.65"
  Standover Height (SO): 9.0"
• Seat Clamp: integrated
• Seat Post Diameter: 25.4mm

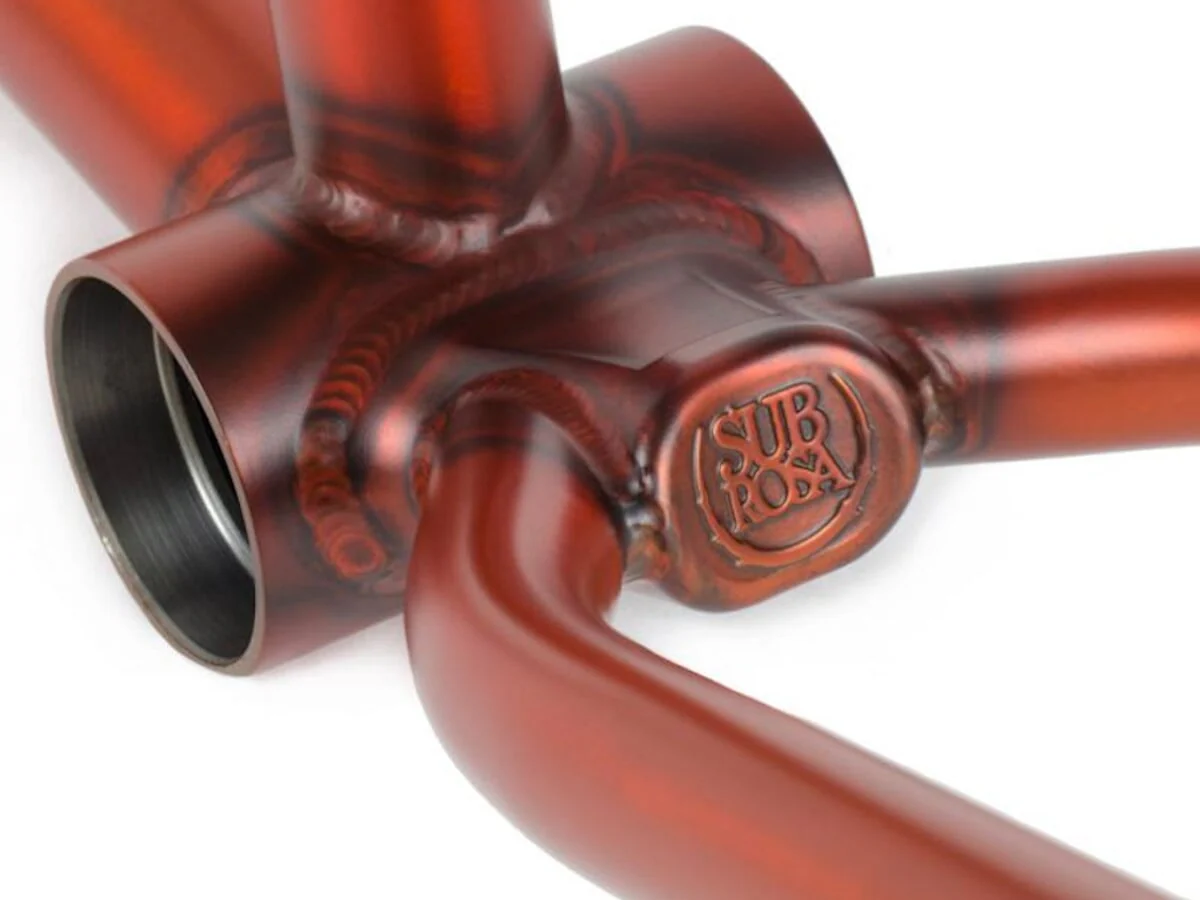

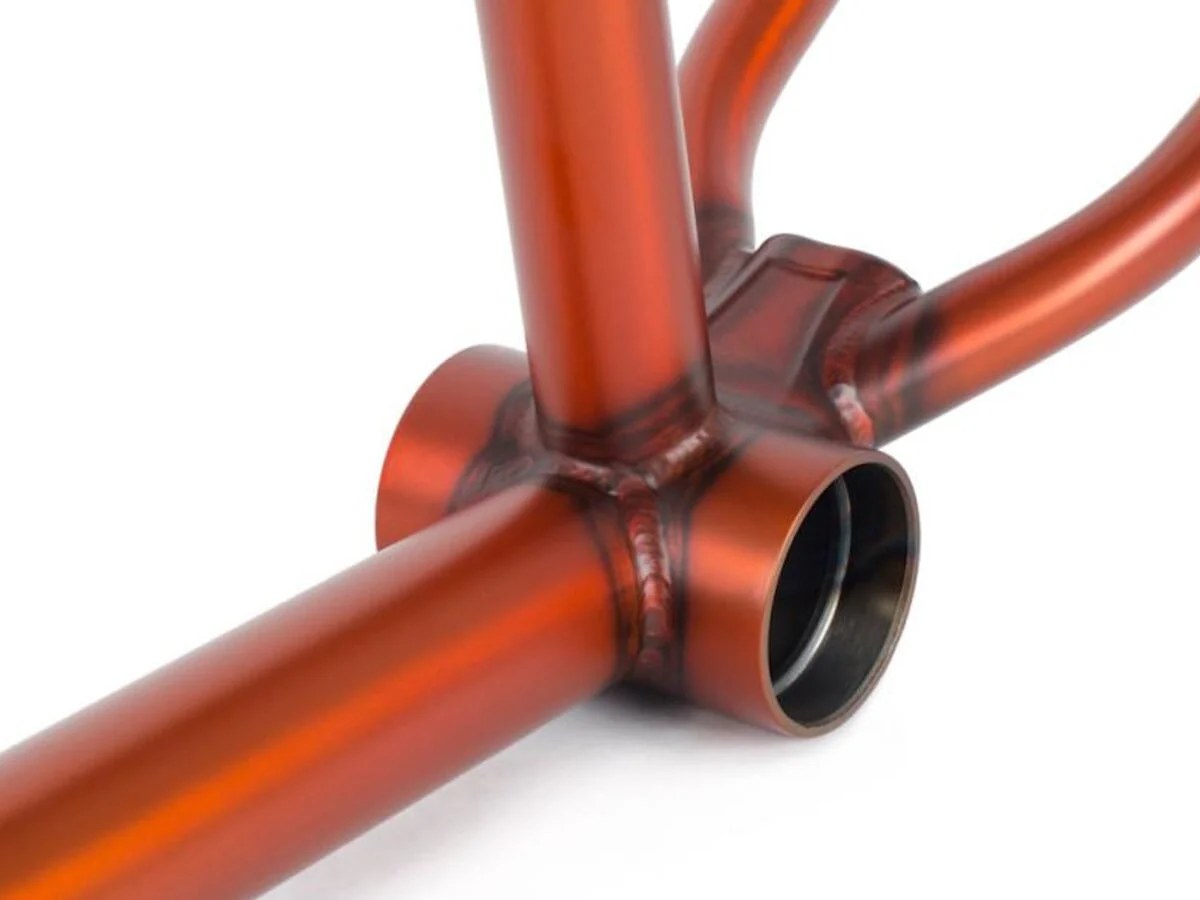

• Bottom Bracket: Mid BB

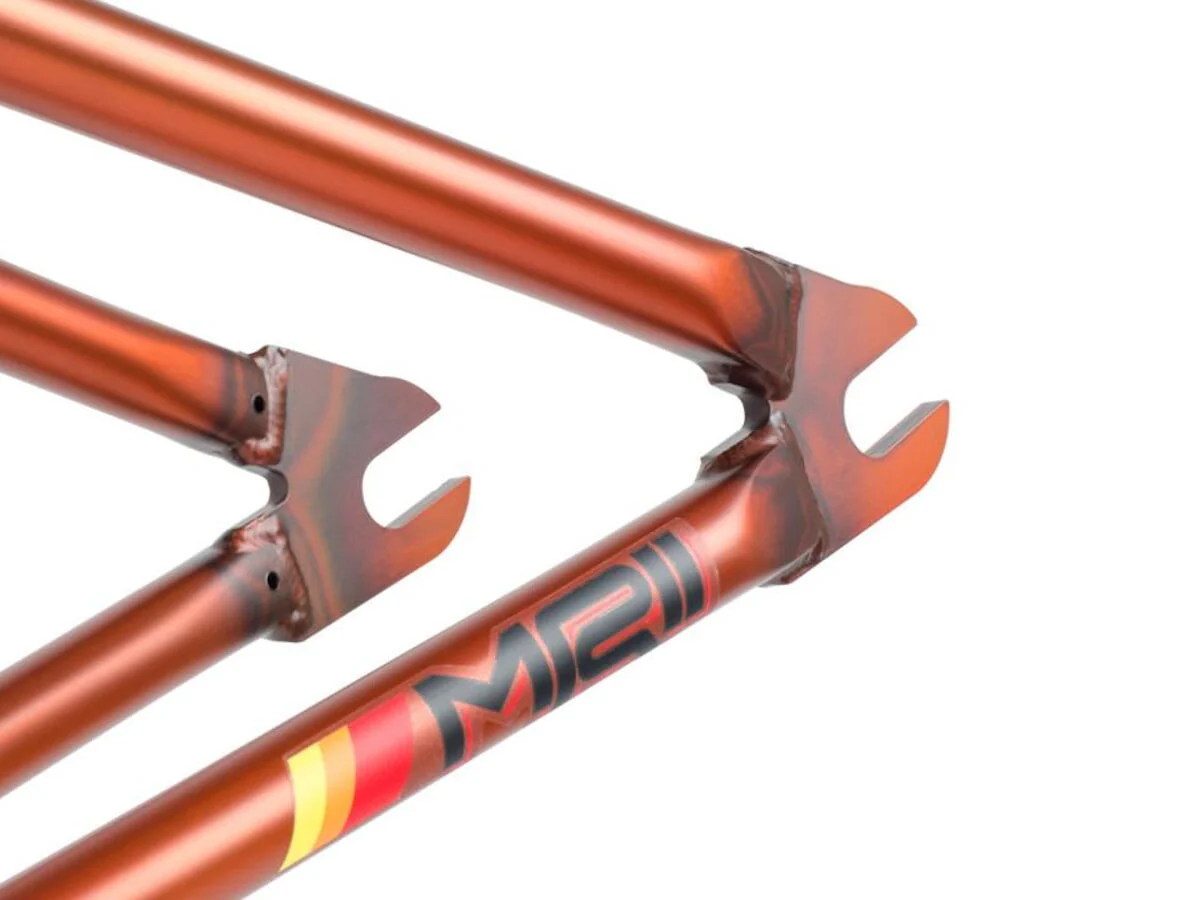

• Dropouts: 6mm thick, 14mm slots, heat treated
• Chain Tensioners: without
• Brake mounts: removable, M6, included with delivery
• Extras: Matt Ray Signature frame, Wide rear end for fat 2.4" tyres and hubguards
