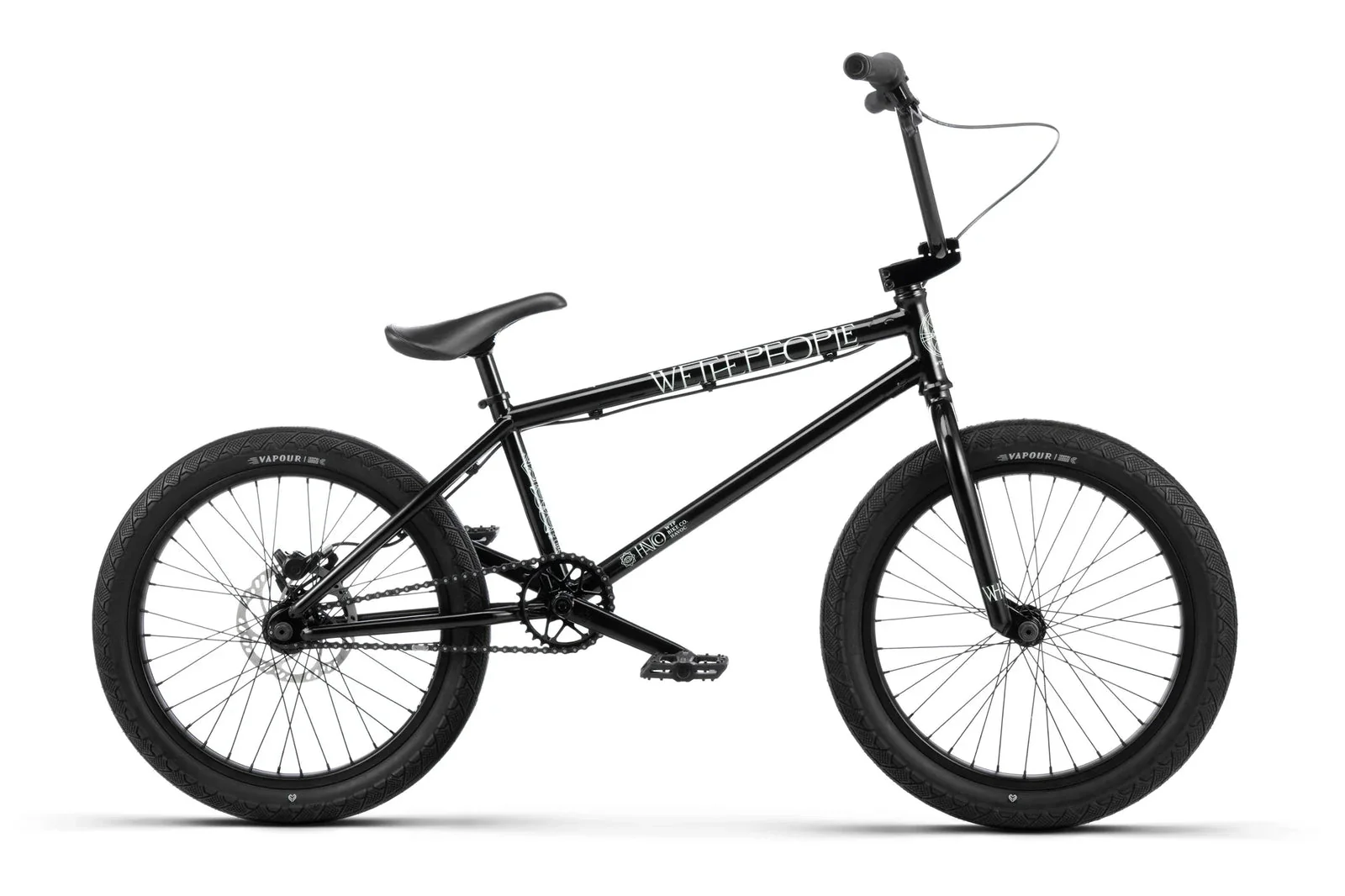

WeThePeople Havoc Complete BMX Bike

WeThePeople Havoc Complete BMX Bike

Frame: WETHEPEOPLE "HAVOC 20" frame, trail geometry,  4130 full crmo, disc brake mount
Fork: WETHEPEOPLE "HAVOC 20" fork, 4130 ful crmo, 32mm offset
Bar: WETHEPEOPLE "HAVOC 20" bar, full 4130 crmo
Grips: SALT "EX" grips, 155.4mm, with flange
Stem: ÉCLAT "METRA" topload stem, cnc alloy, 51mm reach, 30mm rise
Headset: ÉCLAT "WAVE 6" int. headset, sealed bearing
no holes for removable gyro tabs

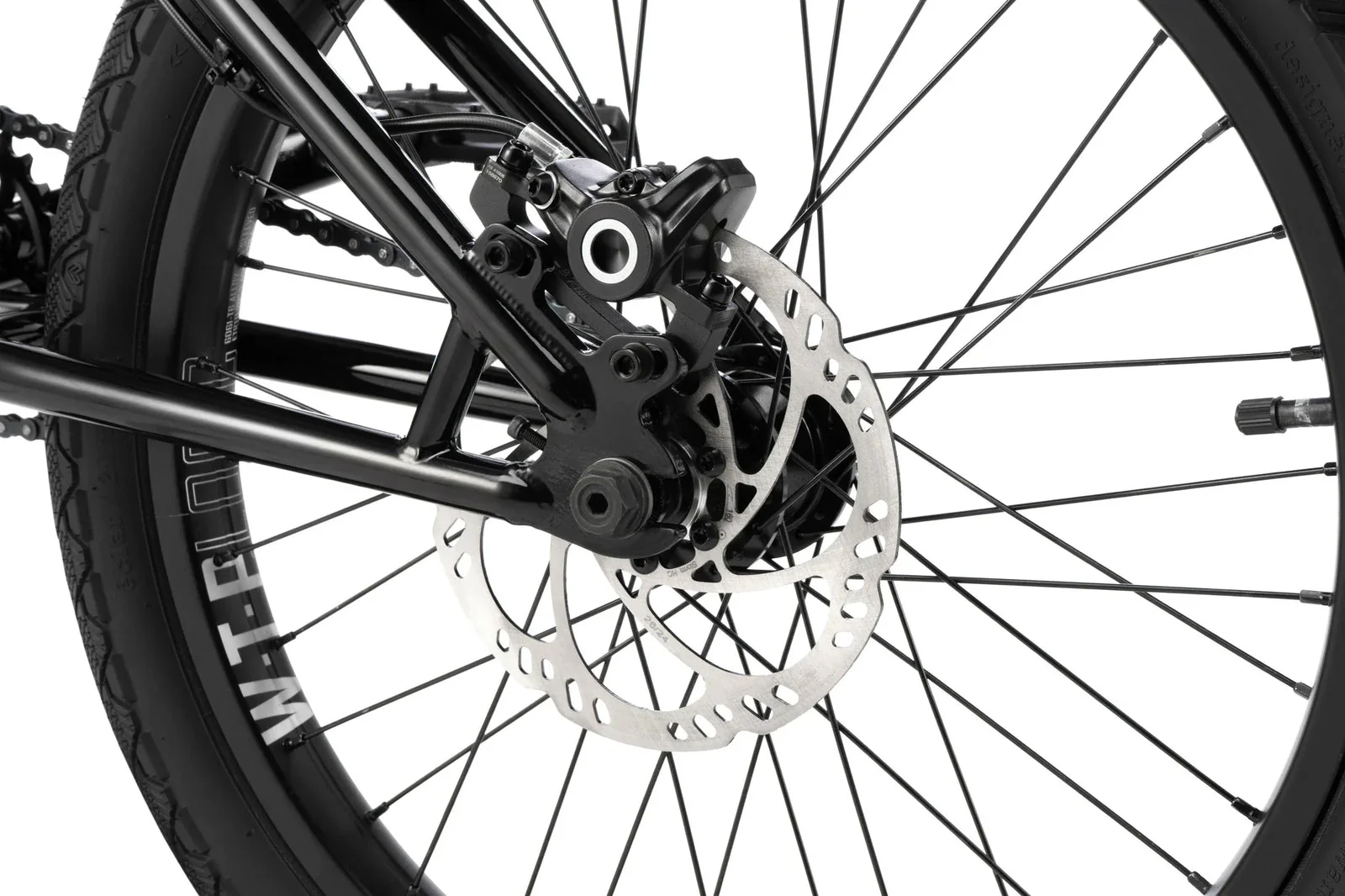

Brake: MAGURA "MT4" hydraulic disc brake brake lever, MAGURA "MT4" hydraulic disc brake, 140mm rotor
Crank: SALTPLUS "ULTRA" square profile 3pc "TSS" crank, crmo, 170mm, 8 spline
BB: SALT "MID" bb, 19mm, press fit, sealed bearing
Pedals: ÉCLAT "CONTRA" pedals, nylon/fiberglass
Chain: WETHEPEOPLE "SUPPLY" chain
Sprocket: ÉCLAT "EXILE" sprocket, cnc, 7075-T6 alloy, 30t
1pc cassette driver, 9t (RSD)
Front Hub: ÉCLAT "EXILE" hub, fully sealed, 3/8"s axle, 36h
Rear Hub: ÉCLAT "EXILE DISC" cassette hub, fully sealed, 9t, female axle, 36h, disc brake mount
-
Front Rim: WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36h
Rear Rim: WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36h
Seat: ÉCLAT "EXILE" pivotal seat, slim padded
Seatpost: SALT "AM" pivotal seat post, 200mm, alloy
Seat clamp: ÉCLAT "PURE" seat clamp, forged alloy
Tires: ÉCLAT "VAPOUR" tires, 20" x 2.4" front, 20" x 2.25" rear
-
Weight: 12.26kg / 27.03lbs

Geometry:

Top Tube Length: 21.35"
Chain Stay Length: 14.1"  (13.9"-14.6")
Head Tube Angle: 74.25°
Seat Tube Angle: 71°
Bottom Bracket Height: 11.5"
Stand Over Height: 9.5"

Bar Rise: 9.25"
Bar Width: 29.25"
Bar Back Sweep: 12°
Bar Upsweep: 2.5°
