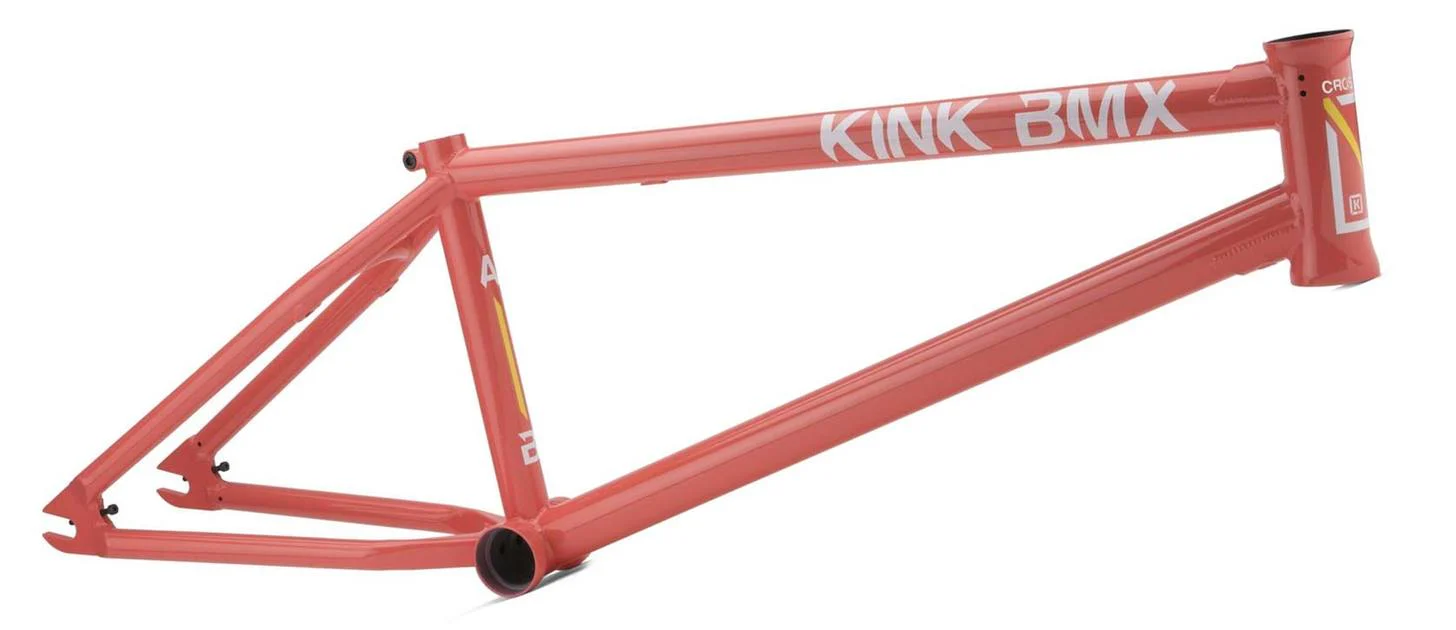

Kink Crosscut Frame - Gloss Coral

Kink Crosscut Frame - Gloss Coral

The Kink Crosscut is a modern-day beast of a frame. The double-butted toptube and downtube with both upper and lower gussets will stand up to the hardest riding, and the short 12.5” chainstay length and quick 75.5° headtube angle make this frame nice and nimble. The generous 9.25” standover height gives the frame a clean and traditional look, but with the aforementioned modern-day geometry. The all new investment cast chainstay yoke enables you to ride any modern tire size up to 2.55” and run your choice of 25t or 28t sprocket. This frame also comes standard with an integrated seat post clamp, integrated chain tensioners, and removeable brake mounts.

Chainstay length (Slammed): 12.5'' (31.8cm)
Frame standover height: 9.25'' (23.5cm)
Frame material: Chromoly Steel, 4130
Bottom bracket: Mid
Weight: 5lbs
Headtube angle:75.5°
Seattube angle:71°
Seat clamp: Integrated
Headset type: Integrated 1 1/8"
Headtube length: 127mmmm
Gyro compatible: Yes
