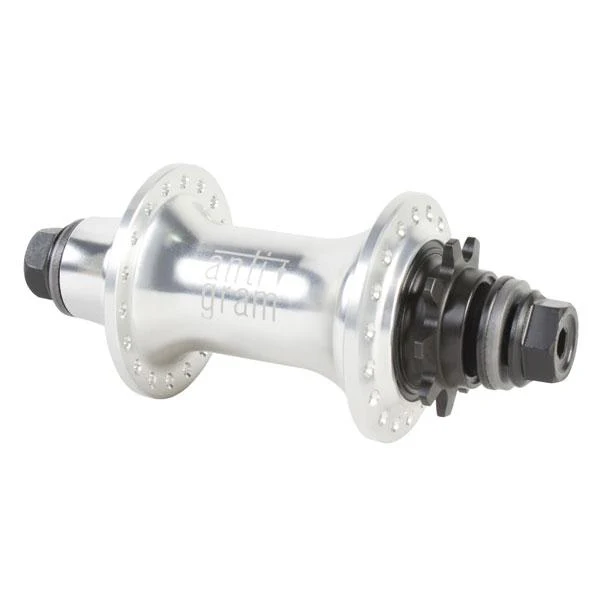

Odyssey Antigram V1 Cassette Hub

The Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and guard compatible.

Specs

• 2014-T6 forged aluminum hub shell
• 6903RS sealed cartridge ball bearings
• 9-T driver with 3-Pawn independent springs design and precision caged needle bearings
• RHD/LHD switchable
• Click HERE to download the full tech sheet.

Axle Options

• 14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
• 3/8", 4130 chromoly axle bolts w/17mm 7075-T6 aluminum female axle

Weights

• With 14mm Chromoly Axle: 14.5oz / 411g
• With 3/8" Aluminum Axle: 12.5oz / 354g

Guard Options

• 7075-T6 Aluminum Design (Available Now)
• Proprietary Plastic Design (Available Soon)

Measurements

• Drive Side Effective Flange Diameter: 49mm
• Non-Drive Side Effective Flange Diameter: 49mm
• Drive Side Flange to Center Distance: 30mm
• Non-Drive Side Flange to Center Distance: 30mm
