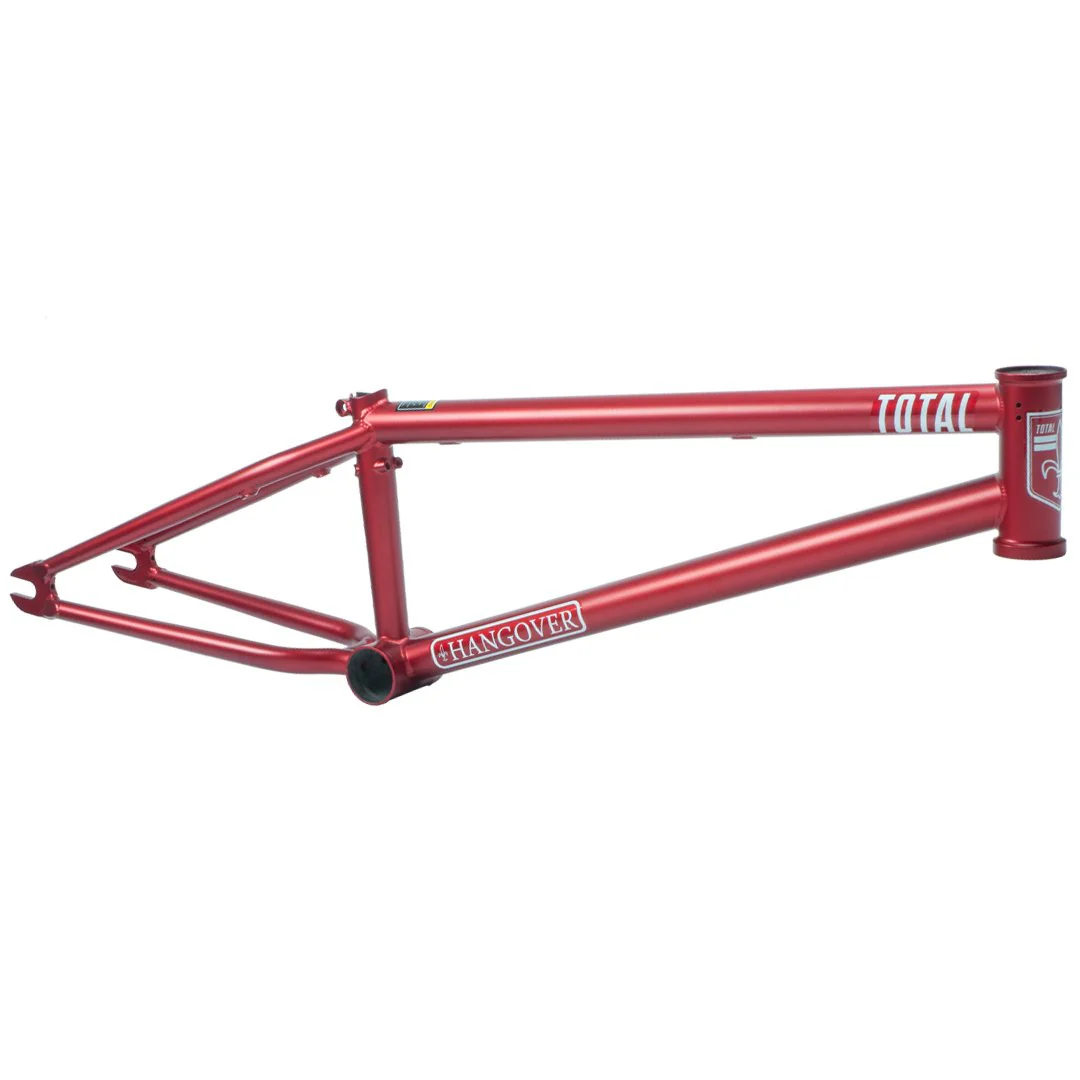

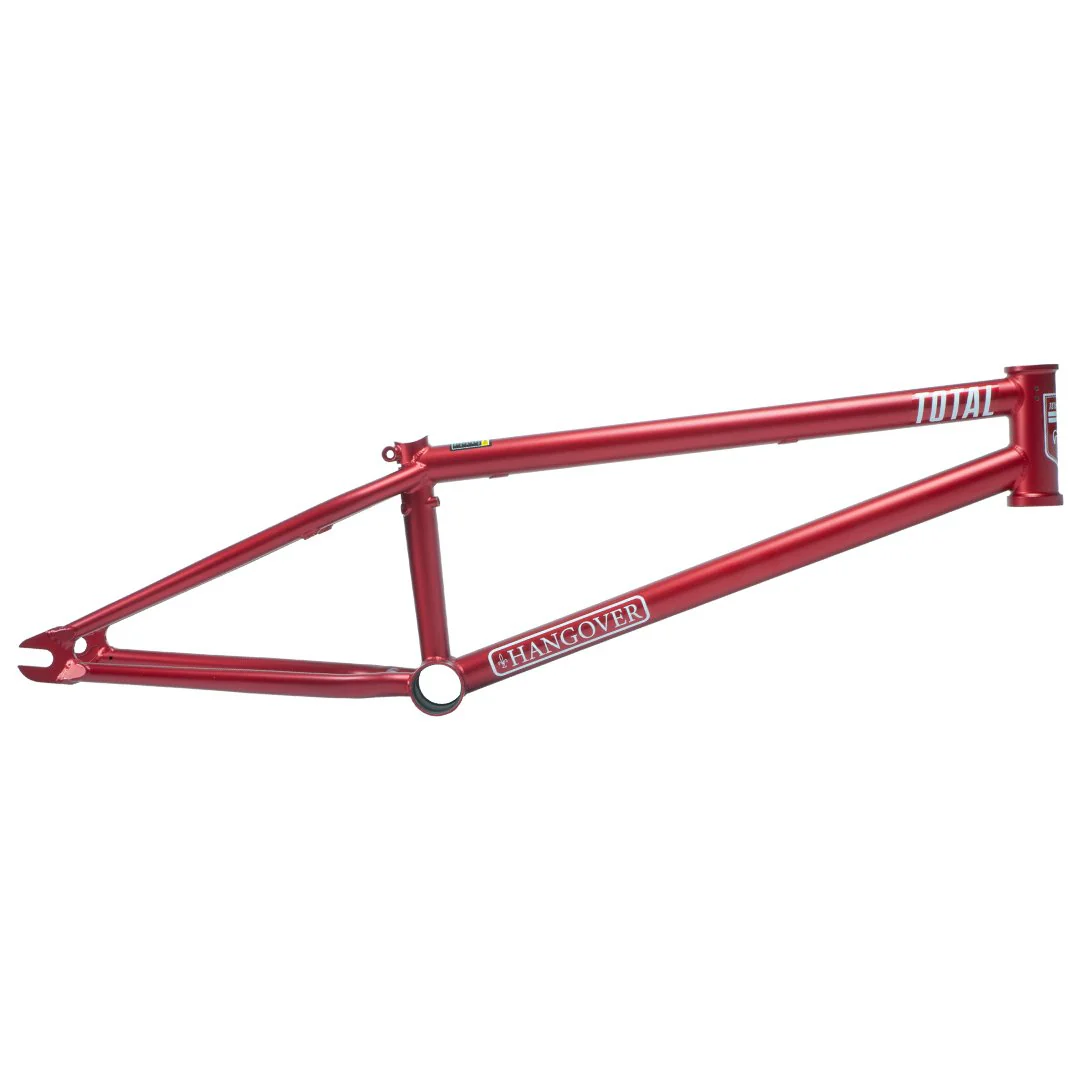

Total BMX Hangover H4 Frame - Dirty Red

Total BMX Hangover H4 Frame - Dirty Red

Ovalised chain stays and new colours round off the key changes for the H4.

Specification:

Full Multi Butted Japanese Sanko 4130 Chromoly tubing

Head Tube Angle: 75.25º

Standover Height: 7.25” (centre of BB to centre of TT)

Rear End Length: 12.6” - 12.9”

Top Tube: 32mmø Multi butted internal gusseted

Down tube 34.9mm taper to 32mm internally gusseted

Tapered chain stays 21mm-17mm (Ovalised for dent resistance and extra tyre clearance)

Tapered seat stays 19mm-14mm, triple butted for lightness

Tyre clearance- 2.4”

BB Height: 11.5” low and stable

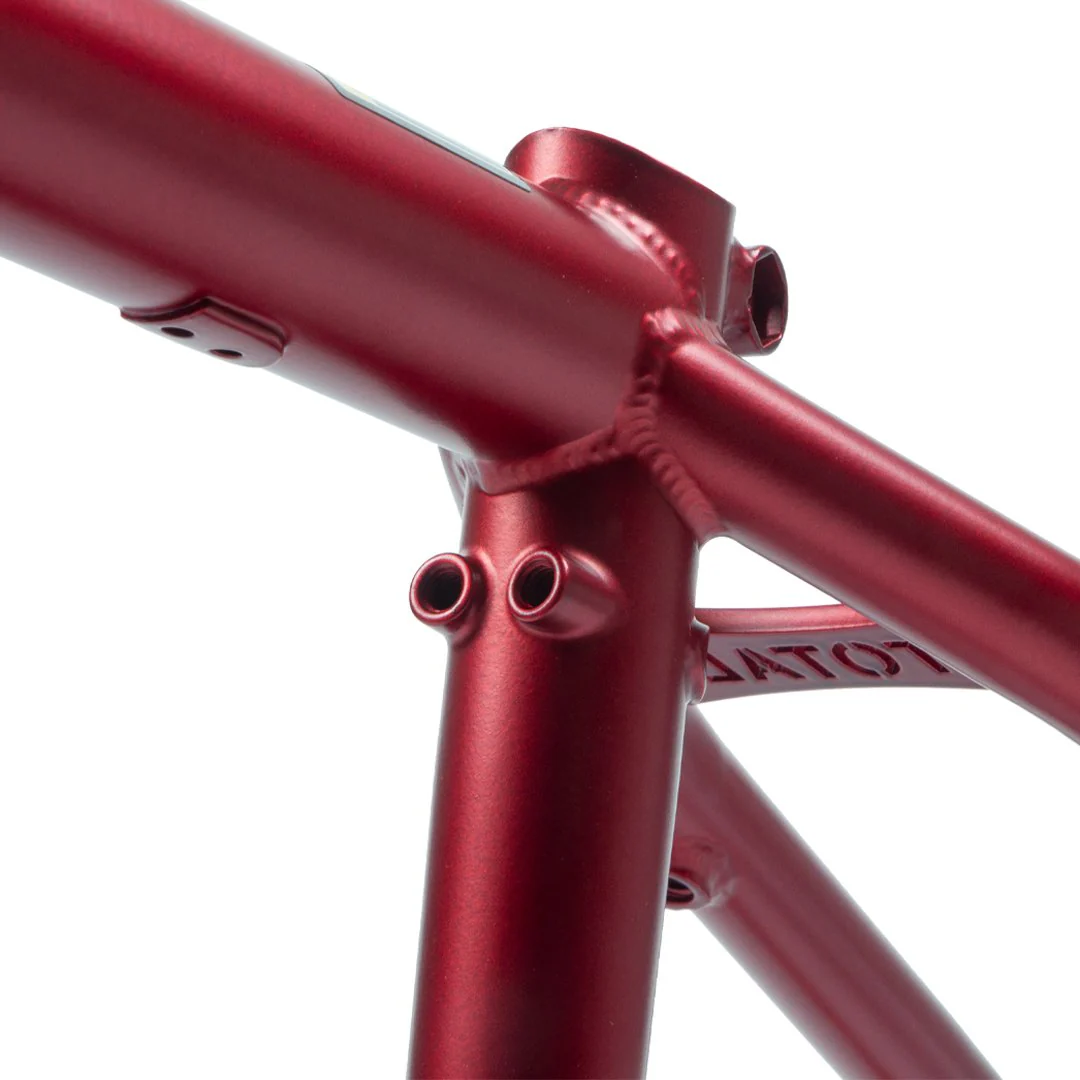

Headtube: Integrated and heat treated, drilled for gyro tabs. 117mm height

Removable brake mounts plus DBS kit and tabs all included (other brands charge extra)

Dropouts: 6mm thick heat treated with integrated chain adjusters and CNC cutouts

Brake Mod, 'DBS' (Dual Brake System) excusive to Total frames

Sizes:19.8”, 20.4”, 20.6”, 21” top tube lengths

Colour: Black ED/ Gunmetal Grey/ White Gloss

Weight: (Black ED, 19.8") - 2056g / 4lbs 8.6oz
